|MATERIAL:||Ss304||Name:||Brickwork Reinforcement Mesh|
SS304 brick wall wire mesh,
480g brick wall wire mesh,
0.35mm brick wall wire mesh

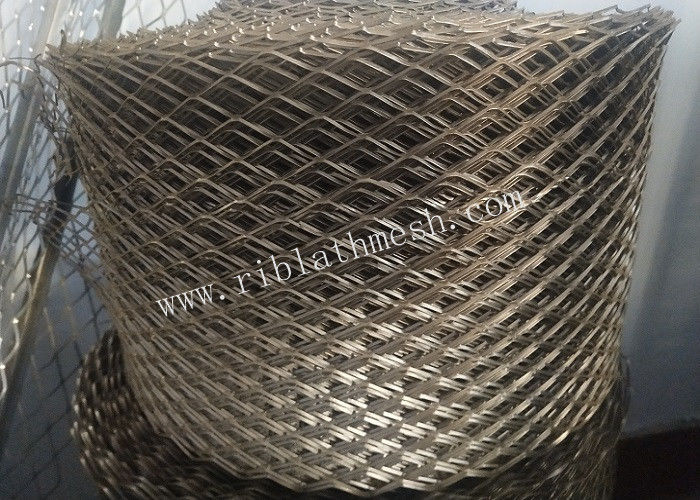

20cm Width Brick Wall Mesh SS304 Anti - Cracking 480g 0.35MM Thickness
Hole Type: Diamond
Hole Size: 12*25mm like the photo
Width: 7.5cm,10cm, 15cm, 20cm
How to Install Brick Wall Mesh:
The Brick Wall Mesh is laid in strips between brick or block courses leaving approximately 25mm clearance from the faces of the work. Where coil mesh joins are required, ensure they overlap by at least 75mm.
The reinforcement is then simply embedded in the mortar for the next course.
In most instances, application every third course, for the full length of the wall, will be sufficient.
To reinforce brickwork at an opening, e.g. window or door, mesh should be installed to overlap part of the opening, and part of the solid wall.
Thinking of the width of the opening, lay the mesh approximately a quarter of the way across the opening. The mesh should lie the same distance again, across the solid wall.
Above windows or doors, install Catnic mesh for 2-3 courses, starting from the course above the lintel .
