| MATERIAL: | GALVANIZE PLATE | WIDTH: | 0.45M |
|---|---|---|---|
| LENGTH: | 2-3M | Rib Height: | 14-20mm |
| Thickness: | 0.18-0.57mm | Color: | Silver |
| High Light: | hi rib lath,high rib sheet |
||

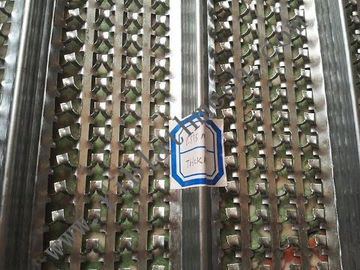

Galvanized High Ribbed Formwork 14-20mm Height High Rib Mesh Building Material
HIGH RIBBED FORMWORK is manufactured from hot-dipped galvanized steel sheets. Because its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free form work.
Material:
Hot-dipped galvanized steel sheets
Specification:
| model | Thickness (mm) | Weight (kg) | Width (mm) | Length (mm) | Rib Height (mm) | Rib Distance(mm) |
| 021 | 0.21 | 1.70 | 450 | 2200 | 14-20 | 90 |
| 023 | 0.23 | 1.90 | 450 | 2200 | 14-20 | 90 |
| 030 | 0.30 | 2.48 | 450 | 2200 | 14-20 | 90 |
| 035 | 0.35 | 2.90 | 450 | 2200 | 14-20 | 90 |
| 040 | 0.40 | 3.30 | 450 | 2200 | 14-20 | 90 |
| 045 | 0.45 | 3.70 | 450 | 2200 | 14-20 | 90 |
| 050 | 0.50 | 4.10 | 450 | 2200 | 14-20 | 90 |
15MM RIB HEIGHT
20MM RIB HEIGHT
How to Install High Ribbed Formwork
Feature:
Because its meshes and U patterns, it has better anti-stress capabilit and forming flesbility than normal metal lath.
