Product Details:
Payment & Shipping Terms:
|
| MATERIAL: | GALVANIZED STEEL | WIDTH: | 450MM |
|---|---|---|---|
| LENGTH: | 2000MM-2500MM | RRIB HEIGHT: | 14MM-21MM |
| High Light: | 0.23mm thickness hy rib formwork,high ribbed formwork steel,steel high ribbed formwork |
||

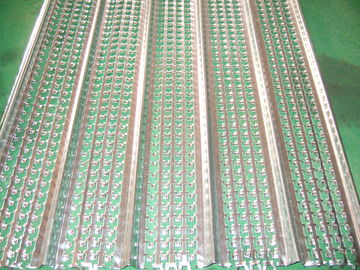

Hy Rib , High Ribbed Formwork , THICKNESS 0.23MM, 0.30MM, 0.35MM, 0.40MM, 0.45MM, 0.50MM WIDTH 450MM
Hy Rib is manufactured from hot-dipped galvanized steel sheets. Because of its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath.
Hy Rib product has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free form work.
Hy Rib (HIGH RIBBED FORMWORK)
| Model | Thickness (mm) | Weight (kg) | Width (mm) | Length (mm) | Rib Height (mm) | Rib Distance(mm) |
| 021 | 0.21 | 1.70 | 450 | 2200-2500 | 14-21 | 90 |
| 023 | 0.23 | 1.90 | 450 | 2200-2500 | 14-21 | 90 |
| 030 | 0.30 | 2.48 | 450 | 2200-2500 | 14-21 | 90 |
| 035 | 0.35 | 2.90 | 450 | 2200-2500 | 14-21 | 90 |
| 040 | 0.40 | 3.30 | 450 | 2200-2500 | 14-21 | 90 |
| 045 | 0.45 | 3.70 | 450 | 2200-2500 | 14-21 | 90 |
| 050 | 0.50 | 4.10 | 450 | 2200-2500 | 14-21 | 90 |
