Wall Structure Galvanized Expanded Metal Lath 10cm Rib Distance Formwork Mesh

Large Image : Wall Structure Galvanized Expanded Metal Lath 10cm Rib Distance Formwork Mesh

Product Details:

Place of Origin:	HEBEI CHINA
Brand Name:	XINGTAI
Model Number:	03525

Payment & Shipping Terms:

Minimum Order Quantity:	500 PIECES
Price:	USD2.05--USD2.40 PER PIECE
Packaging Details:	500 PIECES PER PALLET
Delivery Time:	15-20 DAYS
Supply Ability:	50,000 PIECES PER MONTH

Contact Now

Detailed Product Description

RAW MATERIAL:	GALVANIZED STEEL	THICKNESS:	0.25MM, 0.30MM, 0.35MM, 0.40MM
WIDTH:	600MM	LENGTH:	2500MM
RIB DISTANCE:	100MM	RIB HEIGHT:	4MM, 8MM, 10MM
High Light:	flat rib lath , rib lath cladding

Rib Lath, WIDTH 600MM, RIB DISTANCE: 100MM, RIB HEIGHT: 4MM, 8MM, 10MM LENGTH: 2500MM

RIB LATH

RAW MATERIAL: GLAVNIZED STEEL

THICKNESS: 0.25MM, 0.30MM, 0.35MM, 0.40MM

RIB HEIGHT: 4MM, 8MM, 10MM

RIB DISTANCE: 100MM

WIDTH: 600MM

LENGTH: 2500MM

PACKAGE: 500 PIECES PER PALLET

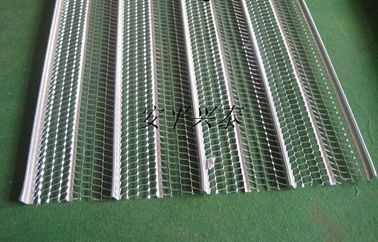

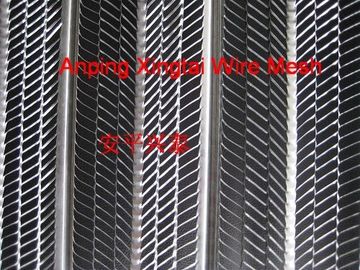

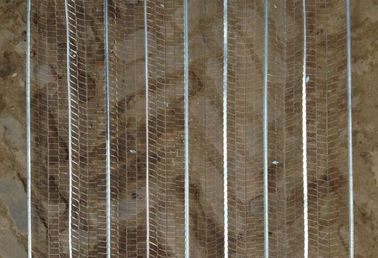

Rib Lath is a kind of formwork mesh from galvanized steel.

Rib Lath offers special extension due to its special opening and the uniform V type reinforced structure in the surface.

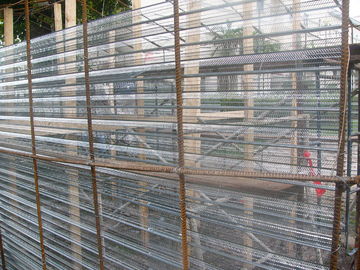

Rib Lath is extensively used in construction of civil building, industrial building, construction under the water like banks, ponds, infrastructure engineering as well as municipal works.

Rib Lath works well with other construction materials to save both cost and ener

	Thickness	Rib distance	Rib height	Width	Length	Kg/m²
RIB LATH	0.25MM	100MM	4MM, 8MM	600MM	2500mm	0.88
RIB LATH	0.30MM	100MM	8MM	600MM	2500mm	1.17
RIB LATH	0.35MM	100MM	8MM	600MM	2500mm	1.36
RIB LATH	0.40MM	100MM	8MM	600MM	2500mm	1.56
