Hot Galvanized Stainless Steel Render Lath MRL600 Civil Construction Material

Certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
I'm Online Chat Now

Hot Galvanized Stainless Steel Render Lath MRL600 Civil Construction Material

Hot Galvanized Stainless Steel Render Lath MRL600 Civil Construction Material
Hot Galvanized Stainless Steel Render Lath MRL600 Civil Construction Material Hot Galvanized Stainless Steel Render Lath MRL600 Civil Construction Material Hot Galvanized Stainless Steel Render Lath MRL600 Civil Construction Material

Large Image :  Hot Galvanized Stainless Steel Render Lath MRL600 Civil Construction Material

Product Details:
Place of Origin: Hebei
Brand Name: Xingtai
Certification: ISO9001.2000
Model Number: MRL600
Payment & Shipping Terms:
Minimum Order Quantity: 500Pcs
Packaging Details: PALTE
Delivery Time: 10DAY
Payment Terms: L/C, T/T
Supply Ability: 10000Pcs/Weeks
Detailed Product Description
Material: Hot Galvanized Steel Thinkness: 0.3mm
Width: 610mm Length: 2200mm
Packing: Plate Rib: 8mm
High Light:

stainless steel render lath

,

galvanized lath mesh

Metal Rib Lath Stainless Steel Expanded Metal Mesh Expand rib lath Mesh

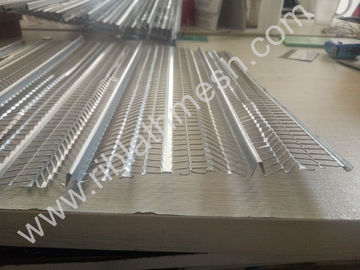

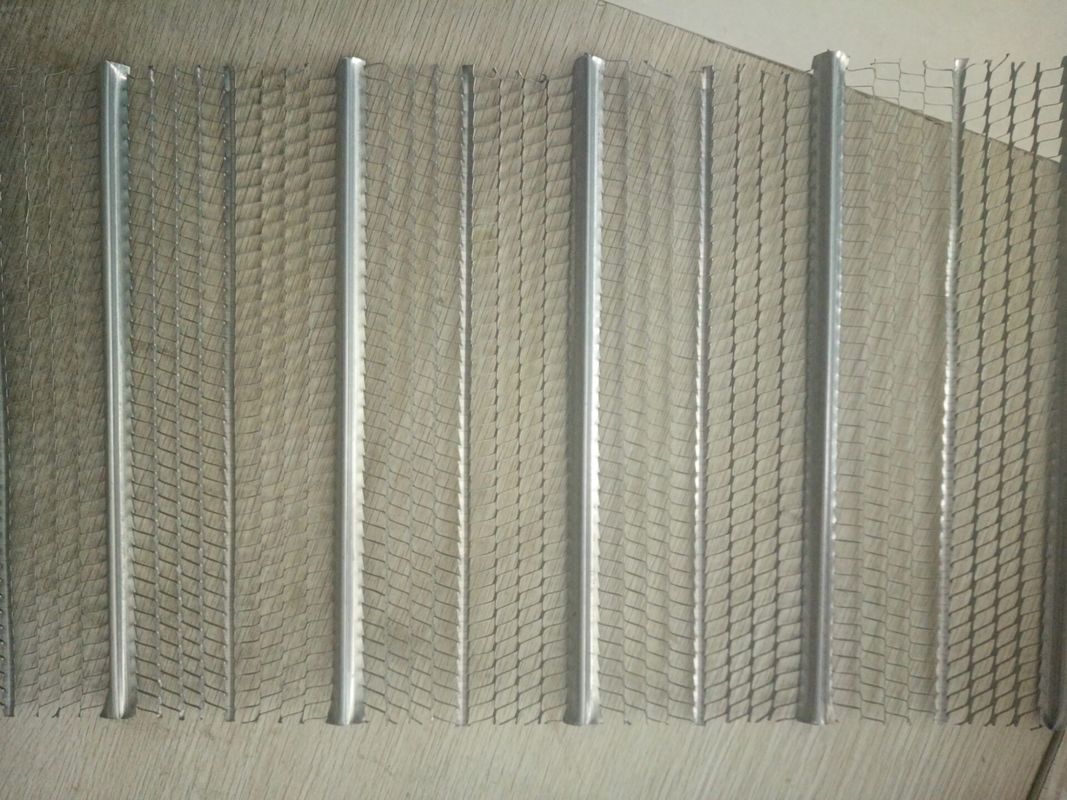

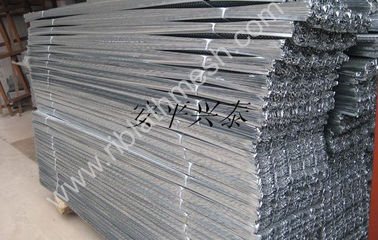

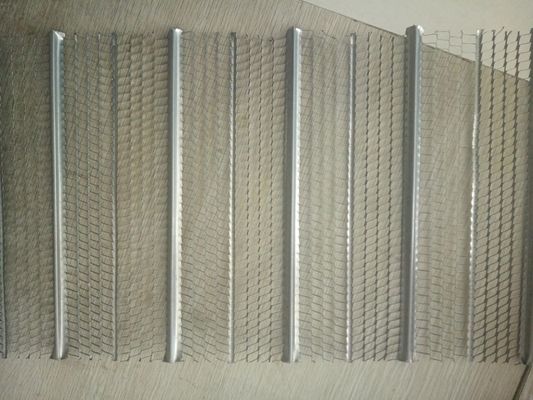

Rib Lath (Rib Expanded Metal Lath)
is a kind of expanded metal from galvanized steel or 304 stainless steel. Rib Lath offers special extension due to its special opening and the uniform V type reinforced structure in the surface. Rib Lath is extensively used in construction of civil building, industrial building, construction under the water like banks, ponds, infrastructure engineering as well as municipal works. Rib Lath works well with other construction materials to save both cost and energy.

Sw x Lw: 12X8mm

Thickness(mm) Sw*Lw(mm) Rib Height(mm) Rib Distance(mm) Weight (Kg/m²) Width(mm)
0.30 12*8 5 100 1.2 610
0.35 12*8 5 100 1.4 610
0.40 12*8 5 100 1.6 610
0.30 12*8 8 100 1.2 610
0.35 12*8 8 100 1.4 610
0.40 12*8 8 100 1.6 610
