ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Width: | 500-900mm | Hole: | 5*11mm |
|---|---|---|---|
| Length: | 1-3m | Rib Height: | 9mm |
| Material: | Galvaninzed Plate | Rib Distance: | 100mm |
| High Light: | flat rib lath,hi rib mesh |
||

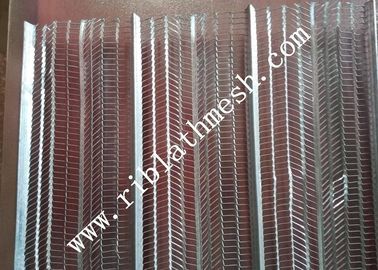

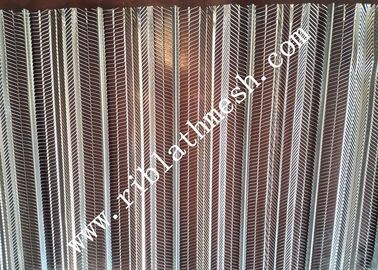

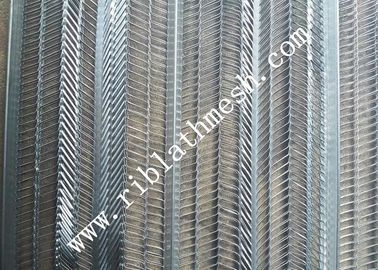

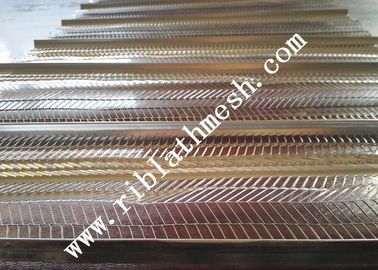

Galvanized Rib Lath Mesh XT1008 0.3mm-0.4mm thickness , 500-900 width 1-3m Length
Rib Lath Mesh (Rib Expanded Metal Lath) is a kind of expanded metal from galvanized steel . Rib Lath offers special extension due to its special opening and the uniform V type reinforced structure in the surface. Rib Lath is extensively used in construction of civil building, industrial building, construction under the water like banks, ponds, infrastructure engineering as well as municipal works. Rib Lath works well with other construction materials to save both cost and energy.
Material:
Galvanized Steel Plate
Specification:
Width:500mm,600mm,700mm,800mm,900mm
Thickness:0.3-0.4mm
Hole size:5*11mm
Tendons Height:9mm
Length:1-3m
| TYPE | THICKNESS(MM) | SW*LW(mm) | Tendons Height(mm) | Reinforcement Distance(mm) | Width(MM) |
| XT1008 | 0.3mm-0.4mm | 5*11 | 9 | 100 | 500-900mm |
Application:
Widely used as a background for plaster, render, stucco application in construction of suspended ceilings partition.
Feature:
Rib Lath offers special extension due to its special opening and the uniform V type reinforced structure in the surface.
