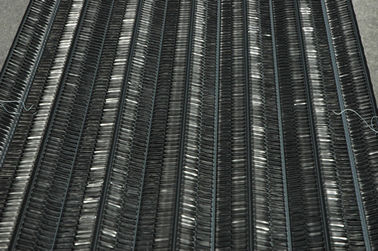

Metal Expanded Galvanized Lath Mesh 0.6x2.4M Max Fixing Centres 400mm

Large Image : Metal Expanded Galvanized Lath Mesh 0.6x2.4M Max Fixing Centres 400mm

Product Details:

Place of Origin:	China
Brand Name:	Shuangjiao
Model Number:	RL-003

Payment & Shipping Terms:

Minimum Order Quantity:	100piece
Packaging Details:	Pallet
Delivery Time:	10days
Payment Terms:	Western Union, L/C, T/T

Contact Now

Detailed Product Description

Material:

Galvanized Steel

Name:

Expanded Metal Rib Lath

Thickness:

0.25mm

High Light:

flat rib lath

hi rib mesh

High quality metal lath and rib lath , expanded metal, concrete reinforcement products and building

Preface

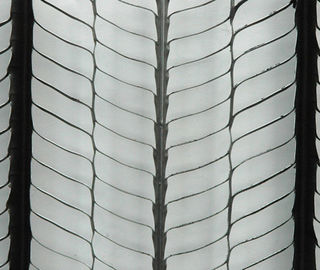

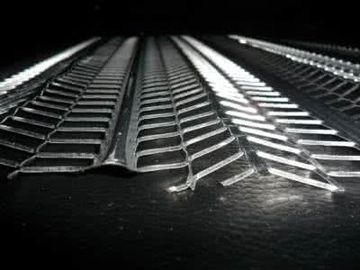

Macro-Mesh Rib Lath is expanded metal lath stiffened by longitudinal steel ribs, formed in the same sheet of metal.

The mesh areas of the lath are expanded by cutting and stretching in the sheet of metal, the ribs being simultaneously roll-formed.

The furring design of the mesh provides an excellent background plaster for construction of partitions, suspended ceilings and refurbishment works. The advantage of rib lath over metal lath is that the support centres can be increased or widened.

Application

Rib Lath is extensively used:

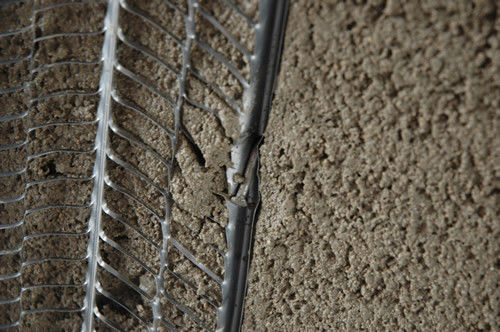

As a plaster background for ceilings, walls, partitions and steelwork encasement.
To refurbish damaged or aged masonry walls.

Ref No	Material Thickness (mm)	Weight kg/m²	Sheet Size (mm)	Material	Maximum Fixing Centres (mm)
HI RIB 25	0.25	1.04	600 x 2400	Steel	400
HI RIB 268	0.25	1.04	600 x 2400	Steel	400
HI RIB 25	0.30	1.14	600 x 2400	Pre-galvanised Steel	400
HI RIB 268	0.30	1.14	600 x 2400	Pre-galvanised Steel	400

Rib Lath (Rib Expanded Metal Lath) is a kind of expanded metal from galvanized steel or 304 stainless steel. Rib Lath offers special extension due to its special opening and the uniform V type reinforced structure in the surface. Rib Lath is extensively used in construction of civil building, industrial building, construction under the water like banks, ponds, infrastructure engineering as well as municipal works. Rib Lath works well with other construction materials to save both cost and energy.
