610mm Width Galvanised Metal Mesh Lath V Type Structure 1-3m Length

610mm Width Galvanised Metal Mesh Lath V Type Structure 1-3m Length
610mm Width Galvanised Metal Mesh Lath V Type Structure 1-3m Length 610mm Width Galvanised Metal Mesh Lath V Type Structure 1-3m Length

Large Image :  610mm Width Galvanised Metal Mesh Lath V Type Structure 1-3m Length

Product Details:
Place of Origin: ANPING HEBEI CHINA
Brand Name: XINGTAI
Model Number: XT0508
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Packaging Details: 700pcs/pallet
Delivery Time: 15-20days
Supply Ability: 1500pcs/day
Detailed Product Description
Name: Rib Lath Mesh Hole: 10*20mm
Length: 1-3m Rib Height: 5mm
Material: Galvaninzed Plate Width: 610mm
High Light:

flat rib lath

,

rib lath cladding

610mm Width Galvanised Metal Mesh Lath V Type Structure 1-3m Length

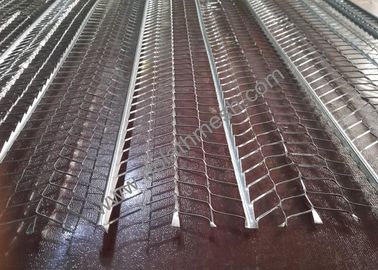

 Rib Lath Mesh (Rib Expanded Metal Lath) is a kind of expanded metal from galvanized steel  Rib Lath offers special extension due to its special opening and the uniform V type reinforced structure in the surface. Rib Lath is extensively used in construction of civil building, industrial building, construction under the water like banks, ponds, infrastructure engineering as well as municipal works. Rib Lath works well with other construction materials to save both cost and energy.



Galvanized Rib Lath Mesh material:



Galvanized plate



Specification:



TYPE THICKNESS(MM) SW*LW(mm) Tendons High(mm) Reinforcement Distance(mm) Width(MM)
XT0508 0.3mm 12.5*17mm 5 150 610



packing: 700pcs / pallet

popular length: 2.1m, 2.2m, 2.4m





We will make two pallets together, It will easy for customer get out the goods.

610mm Width Galvanised Metal Mesh Lath V Type Structure 1-3m Length 0
