Diamond Stainless Steel Brick Reinforcement Mesh

480G/M2 0.35MM Galvanized Anti-Cracking Brickwork Reinforcement Mesh

Brick Reinforcement Mesh is made form the stainless steel plate.This goods is not easy rust.This goods  for use primarily as an anti-cracking reinforcement in the construction of brick and block masonry. Coil mesh is available in a variety of widths to suit most wall constructions and is supplied coiled for ease of handling. Additional applications include strengthening cornices, low walls and balconies over door and window openings.

Specification:

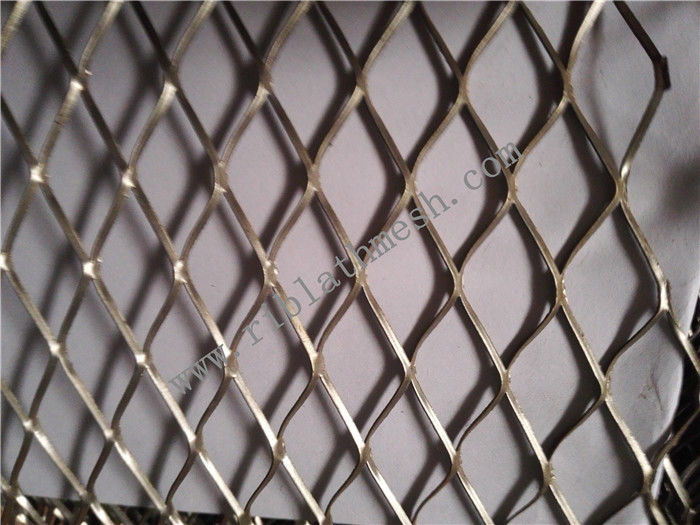

Hole Type: Diamond

Hole Size: 12*25mm like the photo

width: 10cm, 15cm, 20cm

Length: 10m-100m

How to Install  Brickwork Reinforcement Mesh:

The coil mesh is laid in strips between brick or block courses leaving approximately 25mm clearance from the faces of the work. Where coil mesh joins are required, ensure they overlap by at least 75mm.

The reinforcement is then simply embedded in the mortar for the next course.

In most instances, application every third course, for the full length of the wall, will be sufficient.

To reinforce brickwork at an opening, e.g. window or door, mesh should be installed to overlap part of the opening, and part of the solid wall.

Thinking of the width of the opening, lay the mesh approximately a quarter of the way across the opening. The mesh should lie the same distance again, across the solid wall.

Above windows or doors, install Catnic mesh for 2-3 courses, starting from the course above the lintel

Advantage:

anti-cracking reinforcement in the construction of brick and block masonry
