480G/M2 0.35MM Galvanized Anti Cracking Brickwork Reinforcement Mesh

Certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
I'm Online Chat Now

480G/M2 0.35MM Galvanized Anti Cracking Brickwork Reinforcement Mesh

480G/M2 0.35MM Galvanized Anti Cracking Brickwork Reinforcement Mesh
480G/M2 0.35MM Galvanized Anti Cracking Brickwork Reinforcement Mesh 480G/M2 0.35MM Galvanized Anti Cracking Brickwork Reinforcement Mesh

Large Image :  480G/M2 0.35MM Galvanized Anti Cracking Brickwork Reinforcement Mesh

Product Details:
Place of Origin: ANPING HEBEI CHINA
Brand Name: XINGTAI
Model Number: XTBRS480
Payment & Shipping Terms:
Minimum Order Quantity: 500m2
Packaging Details: CARTON OR PALLET
Delivery Time: 15-20
Supply Ability: 5000M2/DAY
Detailed Product Description
MATERIAL: Galvanized Plate Name: Brickwork Reinforcement Mesh
Thickness: 0.35mm Length: 10-100m
Width: 10cm-20cm Weight: 480g/m2
High Light:

galvanized plate brick reinforcement mesh

,

hot dipped plate brickwork reinforcement mesh

,

no welding spot brickwork reinforcement mesh

480G/M2 0.35MM Galvanized Anti-Cracking Brickwork Reinforcement Mesh



Brick Reinforcement Mesh is made from the hot dipped plate. This product has no welding spot .This goods  for use primarily as an anti-cracking reinforcement in the construction of brick and block masonry. Coil mesh is available in a variety of widths to suit most wall constructions and is supplied coiled for ease of handling. Additional applications include strengthening cornices, low walls and balconies over door and window openings.





Specification:



Hole Type: Diamond

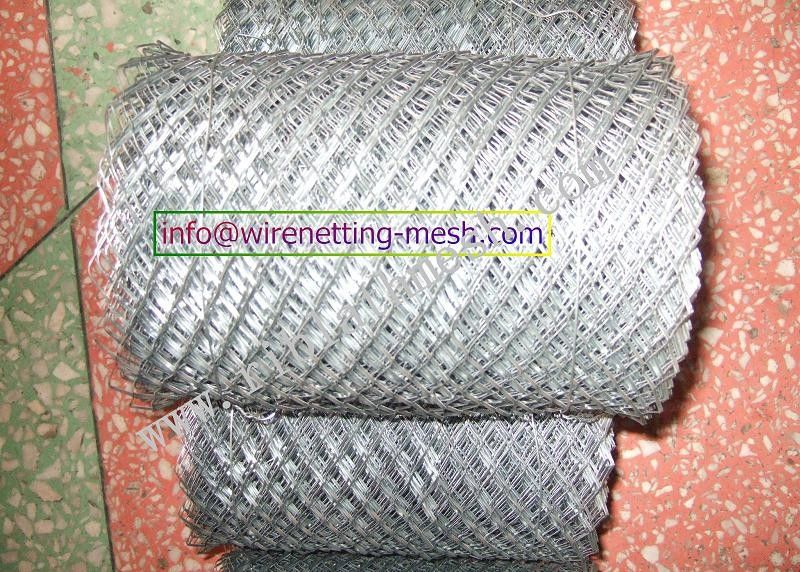

Hole Size: 12*25mm like the photo

width: 10cm, 15cm, 20cm

Length: 10m-100m





How to Install  Brickwork Reinforcement Mesh:

The coil mesh is laid in strips between brick or block courses leaving approximately 25mm clearance from the faces of the work. Where coil mesh joins are required, ensure they overlap by at least 75mm.

The reinforcement is then simply embedded in the mortar for the next course.

In most instances, application every third course, for the full length of the wall, will be sufficient.

To reinforce brickwork at an opening, e.g. window or door, mesh should be installed to overlap part of the opening, and part of the solid wall.

Thinking of the width of the opening, lay the mesh approximately a quarter of the way across the opening. The mesh should lie the same distance again, across the solid wall.

Above windows or doors, install Catnic mesh for 2-3 courses, starting from the course above the lintel



Advantage:

anti-cracking reinforcement in the construction of brick and block masonry
