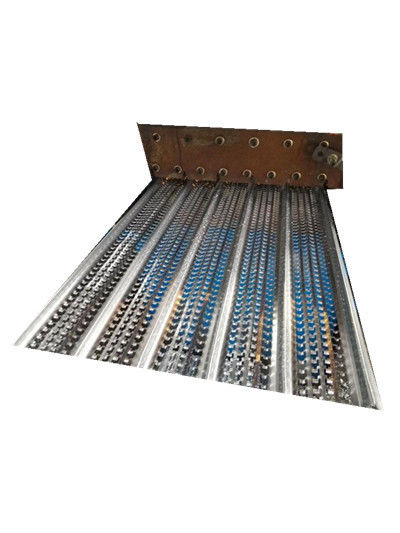

Super Expanded Metal Rib Lath Hot Dip Galvanized 0.21mm Thinkness

Super Expanded Metal Rib Lath Hot Dip Galvanized 0.21mm Thinkness
Super Expanded Metal Rib Lath Hot Dip Galvanized 0.21mm Thinkness

Large Image :  Super Expanded Metal Rib Lath Hot Dip Galvanized 0.21mm Thinkness

Product Details:
Place of Origin: Hebei
Brand Name: Xingtai
Certification: ISO9001, 2000
Model Number: XT-HRM
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Packaging Details: PLATE
Delivery Time: 10Day
Payment Terms: D/A, D/P, T/T, L/C, Western Union, MoneyGram
Supply Ability: 10000Pcs/Week
Detailed Product Description
Material: Hot Dip Galvanized Thinkness: 0.21mm
Width: 450mm Length: 2500MM
Weight: 1.55Kgs Rib: 18mm
High Light:

hy rib lath

,

hy rib formwork



High-Rib Mesh

High-Rib Mesh is an expanded metal sheet product, specifically developed for use as permanent formwork to concrete. The profile of the open mesh, in combination with the tangs, allow the development of dense concrete nodules and indents on the face of the High-Rib, forming an enhanced mechanical key for the second phase pour.

High-Rib Mesh is primarily used in construction joint applications abut it is also used to form wall, beam & column surfaces and slabs soffits, where the formed surface will not be seen.

When High-Rib Mesh is used as vertical formwork, the resulting formwork pressure is significantly less than that developed with traditional forming materials, reducing the overall support requirement.

Product Code Weight kgs/pcs Width mm Length mm Pcs/Bdl Pcs/pallet
XT-HRM 2.30 450 2200/2500 10 500/1000
3.00 450 2200/2500 10 500/1000
3.40 450 2200/2500 10 500/1000
3.80 450 2200/2500 10 500/1000



Galvanized High Ribbed Formwork  14-20mm Height High Rib Mesh Building Material
