20cm Width 0.40MM Brickwork Reinforcement Mesh Galvanized Plate 100m Length

Certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
I'm Online Chat Now

20cm Width 0.40MM Brickwork Reinforcement Mesh Galvanized Plate 100m Length

20cm Width 0.40MM Brickwork Reinforcement Mesh Galvanized Plate 100m Length
20cm Width 0.40MM Brickwork Reinforcement Mesh Galvanized Plate 100m Length

Large Image :  20cm Width 0.40MM Brickwork Reinforcement Mesh Galvanized Plate 100m Length

Product Details:
Place of Origin: ANPING HEBEI CHINA
Brand Name: XINGTAI
Model Number: XTBRS480
Payment & Shipping Terms:
Minimum Order Quantity: 500m2
Packaging Details: CARTON OR PALLET
Delivery Time: 15-20
Supply Ability: 5000M2/DAY
Detailed Product Description
MATERIAL: Galvanized Plate Name: Brickwork Reinforcement Mesh
Thickness: 0.35mm Length: 10-100m
Width: 10cm-20cm Weight: 480g/m2
High Light:

diamond wire mesh brick wall

,

strengthening cornices brickwork reinforcement mesh

,

low walls brickwork reinforcement mesh

20cm Width 0.40MM Brickwork Reinforcement Mesh 100m Length

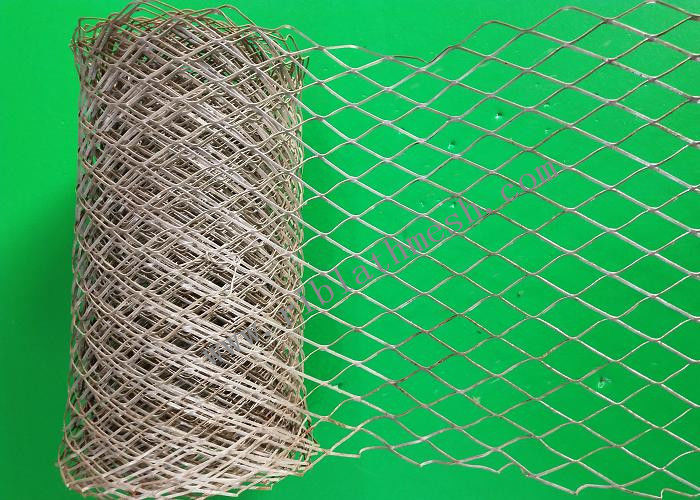

Brick Reinforcement Mesh is made of  the hot dipped plate. The length can be made according to your need.This goods  for use primarily as an anti-cracking reinforcement in the construction of brick and block masonry. Coil mesh is available in a variety of widths to suit most wall constructions and is supplied coiled for ease of handling. Additional applications include strengthening cornices, low walls and balconies over door and window openings.





Specification:



Hole Type: Diamond

Hole Size: 12*25mm like the photo

width: 10cm, 15cm, 20cm

Length: 10m-100m





How to Install  Brickwork Reinforcement Mesh:

The coil mesh is laid in strips between brick or block courses leaving approximately 25mm clearance from the faces of the work. Where coil mesh joins are required, ensure they overlap by at least 75mm.

The reinforcement is then simply embedded in the mortar for the next course.

In most instances, application every third course, for the full length of the wall, will be sufficient.

To reinforce brickwork at an opening, e.g. window or door, mesh should be installed to overlap part of the opening, and part of the solid wall.

Thinking of the width of the opening, lay the mesh approximately a quarter of the way across the opening. The mesh should lie the same distance again, across the solid wall.

Above windows or doors, install Catnic mesh for 2-3 courses, starting from the course above the lintel



Advantage:

anti-cracking reinforcement in the construction of brick and block masonry

20cm Width 0.40MM Brickwork Reinforcement Mesh Galvanized Plate 100m Length 0
