Product Details:
Payment & Shipping Terms:
|
Name: | High Ribbed Forwork | Width: | 0.45M |
---|---|---|---|
Length: | 2.2M | Rib Height: | 18mm |
Thickness: | 0.4mm | Material: | Galvanized Sheets |
High Light: | anti stress high ribbed formwork,high ribbed formwork anti stress,galvanized steel high ribbed formwork |
Description

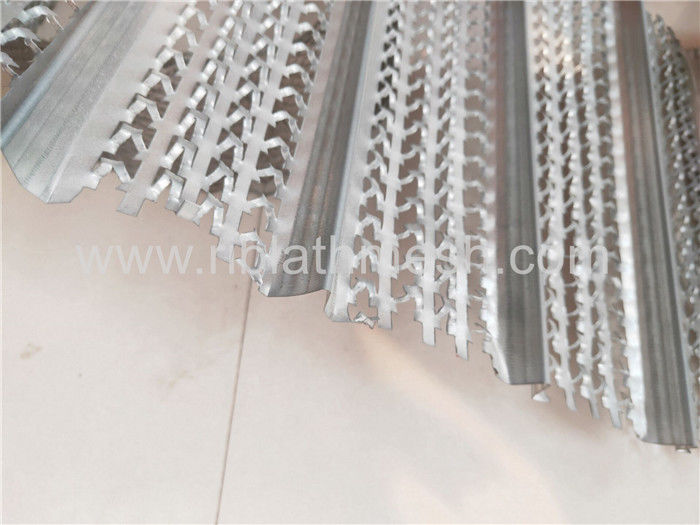

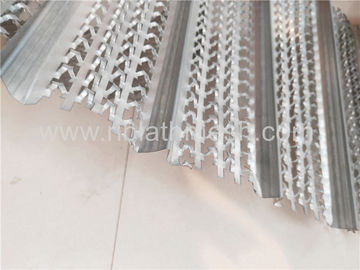

High Ribbed Formwork has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free form work.
Specification:
The follows is the 15mm Height specification for you reference:
Model | Thickness (mm) | Weight (kg) | Width (mm) | Length (mm) | Rib Height (mm) | Rib Distance(mm) |
018 | 0.18 | 1.35 | 450 | 2200 | 15 | 90 |
021 | 0.21 | 1.60 | 450 | 2200 | 15 | 90 |
023 | 0.23 | 1.70 | 450 | 2200 | 15 | 90 |
025 | 0.25 | 1.90 | 450 | 2200 | 15 | 90 |
030 | 0.30 | 2.45 | 450 | 2200 | 15 | 90 |
035 | 0.35 | 2.90 | 450 | 2200 | 15 | 90 |
0.40 | 0.40 | 3.30 | 450 | 2200 | 15 | 90 |
