0.5mm Thickness Round Hole Perforated Metal Mesh 2m Length 1m Width

Certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
I'm Online Chat Now

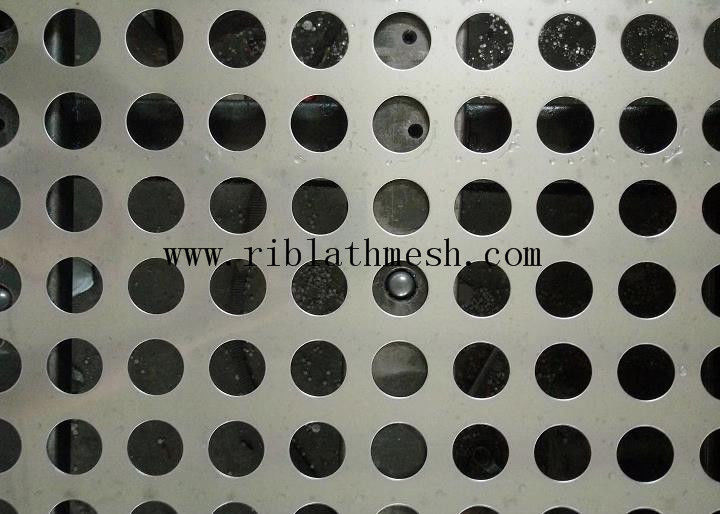

0.5mm Thickness Round Hole Perforated Metal Mesh 2m Length 1m Width

0.5mm Thickness Round Hole  Perforated Metal Mesh 2m Length 1m Width
0.5mm Thickness Round Hole  Perforated Metal Mesh 2m Length 1m Width

Large Image :  0.5mm Thickness Round Hole Perforated Metal Mesh 2m Length 1m Width

Product Details:
Place of Origin: Anping Hebei China
Brand Name: JiaFu
Model Number: JFPD01
Payment & Shipping Terms:
Minimum Order Quantity: 100
Packaging Details: pallet
Supply Ability: 1000/day
Detailed Product Description
Material: Stainless Steel , Iron , Galvanized Metal And Aluminium Width: 1m-1.22m
Length: 2-2.44 Thickness: 0.4-8mm
Hole Pattern: Round Color: White,Red ,Green,Blue And So On
High Light:

decorative perforated sheet metal panels

,

perforated steel plate

0.5 Thickness Round Hole Perforated Metal Mesh 2m Length 1m Width



 Round Hole Perforated Metal Mesh are the most common and most requested.And this product  can be sprayed with different colors of paint.There are several types of hole diameters:very small,medium,large size.Hole pattern is of primary importance:the most popular arrangement is the 60 degree angle pattern,which combines a high rigidity and a decent proportion between open and full areas.The 90 degree pattern is equally popular,abouve all for aesthetic needs whereas the 45 degree pattern is now almost disused.



Opening

(mm)

Center type

(mm)

Thickness of sheet(mm)

Min-max

Size(mm)

Common size

1 2 0.4-1 1220x2400/1000x2000
1.5 2.5 0.4-1 1220x2400/1000x2000
2 3 0.4-2 1220x2400/1000x2000
2.5 3.5 0.4-2.5 1220x2400/1000x2000
3 4 0.4-3 1220x2400/1000x2000
4 5.5 0.4-4 1220x2400/1000x2000
5 6.5 0.4-5 1220x2400/1000x2000
6 8 0.4-5 1220x2400/1000x2000
7 9 0.4-6 1220x2400/1000x2000
8 10 0.5-7.5 1220x2400/1000x2000
9 11 0.5-8 1220x2400/1000x2000
10 12 0.6-8 1220x2400/1000x2000
12-20 15-24 0.8-6 1220x2400/1000x2000
21-30 25-36 1.0-6 1220x2400/1000x2000



0.5mm Thickness Round Hole  Perforated Metal Mesh 2m Length 1m Width 0
