| Name: | High Ribbed Formwork | WIDTH: | 0.45M |
|---|---|---|---|
| LENGTH: | 2-3M | Rib Height: | 21mm |
| Thickness: | 0.2-0.57mm | MATERIAL: | Galvanized Plate |
| High Light: | engineering high ribbed formwork,galvanize steel high ribbed formwork,galvanization steel high ribbed formwork |
||

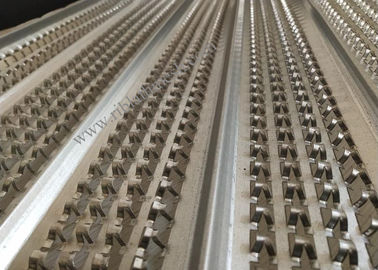

21mm Rib Height Galvanized High Ribbed Formwork 0.45mm Width For Engineering
Galvanized Hy Rib Mesh is made form hot dipped galvanized plate.We could produce the Rib Height 15mm and 21mm.Non-welded expanded mesh.It has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free form work.
Specification:
The follows is the 15mm Height specification for you reference:
| Model | Thickness (mm) | Weight (kg) | Width (mm) | Length (mm) | Rib Height (mm) | Rib Distance(mm) |
| 021 | 0.21 | 1.70 | 450 | 2200 | 14-20 | 90 |
| 023 | 0.23 | 1.90 | 450 | 2200 | 14-20 | 90 |
| 030 | 0.30 | 2.48 | 450 | 2200 | 14-20 | 90 |
| 035 | 0.35 | 2.90 | 450 | 2200 | 14-20 | 90 |
| 040 | 0.40 | 3.30 | 450 | 2200 | 14-20 | 90 |
| 045 | 0.45 | 3.70 | 450 | 2200 | 14-20 | 90 |
| 050 | 0.50 | 4.10 | 450 | 2200 | 14-20 | 90 |
