| Name: | High Ribbed Formwork | LENGTH: | 1-4M |
|---|---|---|---|
| RIB HEIGHT: | 15MM | HOLE: | 5*10MM |
| MATERIAL: | GALVANIZED PLATE | Width: | 450mm |
| High Light: | durable high ribbed formwork,construction high rib sheet,galvanized plate high ribbed formwork |
||

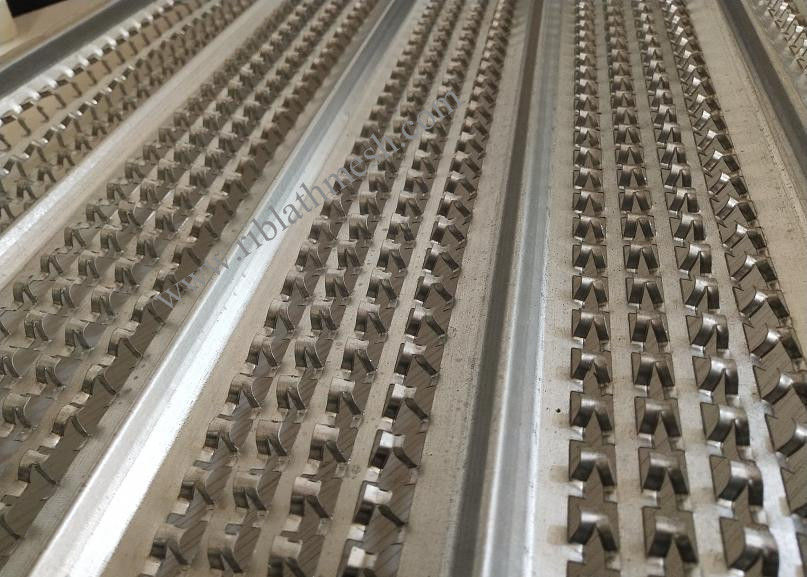

High Ribbed Formwork is made of the hot dipped plate.The width is :0.45mm,Length from 1m-4m.Hole:5*10mm
| Model | Thickness (mm) | Weight (kg) | Width (mm) | Length (mm) | Rib Height (mm) | Rib Distance(mm) |
| 018 | 0.18 | 1.35 | 450 | 2200 | 15 | 90 |
| 021 | 0.21 | 1.60 | 450 | 2200 | 15 | 90 |
| 023 | 0.23 | 1.70 | 450 | 2200 | 15 | 90 |
| 025 | 0.25 | 1.90 | 450 | 2200 | 15 | 90 |
| 030 | 0.30 | 2.45 | 450 | 2200 | 15 | 90 |
| 035 | 0.35 | 2.90 | 450 | 2200 | 15 | 90 |
| 0.40 | 0.40 | 3.30 | 450 | 2200 | 15 | 90 |
Feather:
Galvanized Hy Rib Mesh is manufactured from hot-dipped galvanized steel sheets. Because its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free form work.
