| Width: | 610mm | Hole: | 10*20mm |
|---|---|---|---|
| Length: | 1-3m | Rib Height: | 5mm |
| Material: | Galvaninzed Plate | Name: | Rib Lath Mesh |
| High Light: | flat rib lath,rib lath cladding |
||

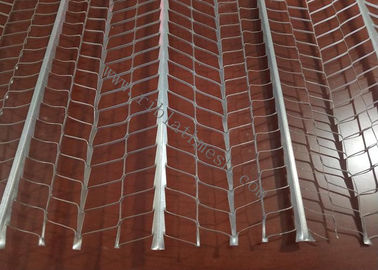

Galvanized 610mm width Metal Rib Lath 2-3m Length 0.3mm Thickness For Building
Metal Rib Lath is a kind of expanded metal from galvanized steel .It can be made the length according you need. The popular Length in the world market is 2.1m-2.5m ,Rib Lath offers special extension due to its special opening and the uniform V type reinforced structure in the surface. Rib Lath is extensively used in construction of civil building, industrial building, construction under the water like banks, ponds, infrastructure engineering as well as municipal works. Rib Lath works well with other construction materials to save both cost and energy.
| TYPE | THICKNESS(MM) | SW*LW(mm) | Tendons High(mm) | Reinforcement Distance(mm) | Width(MM) |
| XT0508 | 0.3mm | 12.5*17mm | 5 | 150 | 610 |
packing: 700pcs,1000pc/pallet popular length: 2.1m,2.2m,2.4m,2.5m,3m
