2.5m Length Thickness Galvanized High Ribbed Formwork For Building 0.30mm Thickness

Large Image : 2.5m Length Thickness Galvanized High Ribbed Formwork For Building 0.30mm Thickness

Product Details:

Place of Origin:	ANPING HEBEI CHINA
Brand Name:	Xingtai
Model Number:	XTHR045

Payment & Shipping Terms:

Minimum Order Quantity:	500pcs
Packaging Details:	500 or 1000pcs/pallet
Delivery Time:	15-20days
Supply Ability:	5000pcs/day

Contact Now

Detailed Product Description

Material:	GALVANIZE PLATE	Width:	0.45M
Length:	2-3M	Rib Height:	14-20mm
Thickness:	0.18-0.57mm	Color:	Silver
High Light:	high rib mesh , high rib sheet

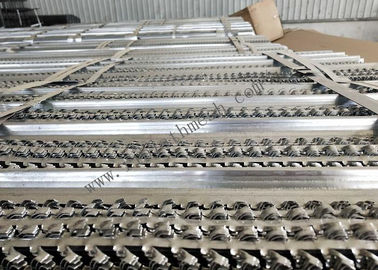

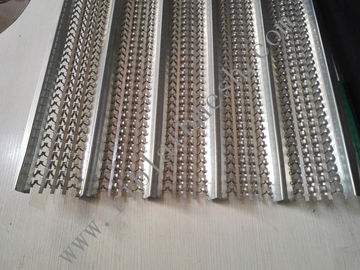

2.5m Length Thickness Galvanized High Ribbed Formwork For Building 0.30mm Thickness

High Ribbed Formwork is manufactured by professional machines with out welds.Its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality, construction security.

Used in:

Tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free form work.

Specification:

model	Thickness (mm)	Weight (kg)	Width (mm)	Length (mm)	Rib Height (mm)	Rib Distance(mm)
021	0.21	1.70	450	2200	14-20	90
023	0.23	1.90	450	2200	14-20	90
030	0.30	2.48	450	2200	14-20	90
035	0.35	2.90	450	2200	14-20	90
040	0.40	3.30	450	2200	14-20	90
045	0.45	3.70	450	2200	14-20	90
050	0.50	4.10	450	2200	14-20	90
