32mm Wing 3*10mm Hole 4mm Reinforce Flange Angled Drywall Corner Bead

Certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
I'm Online Chat Now

32mm Wing 3*10mm Hole 4mm Reinforce Flange Angled Drywall Corner Bead

32mm Wing 3*10mm Hole 4mm Reinforce Flange Angled Drywall Corner Bead
32mm Wing 3*10mm Hole 4mm Reinforce Flange Angled Drywall Corner Bead

Large Image :  32mm Wing 3*10mm Hole 4mm Reinforce Flange Angled Drywall Corner Bead

Product Details:
Place of Origin: ANPING HEBEI CHINA
Brand Name: Jiafu
Model Number: JFAA01
Payment & Shipping Terms:
Minimum Order Quantity: 10000PCS
Packaging Details: CARTON
Delivery Time: 15-30
Supply Ability: 20000PCS/DAY
Detailed Product Description
Material: Aluminium Plate 3003 Thickness: 0.4mm,0.45mm
Length: 2-3m Packing: 80pcs/Carton
Color: Silver Wing: 32mm
High Light:

anti rust angled drywall corner bead

,

3003 plate angled drywall corner bead

,

aluminium plate 3003 angle corner bead

0.45mmThickness 32mm Wing Aluminium Angle Bead 3*10mm Hole 4mm Reinforce Flange

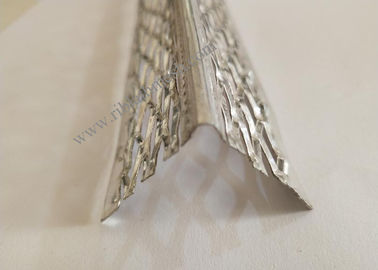

Aluminium Angle Bead is made of 3003.We could produce the thickness 0.4 and 0.45mm.It has a smooth round nose bead with diamond mesh wings for the keying of plaster right up to the nose of the bead. On the outside is the finished edge which is where one side of your drywall knife runs on when you are applying drywall mud. The two flanges sit flat on your raw drywall. The diamond decoration along the length of the flange act as a keyway for holding the drywall mud to the drywall and the corner. This mesh insures a perfect bond and provides effective reinforcement where most needed. Straight edge nose is easy to install and permits plumb straight outside corners. Excellent protection for corridor corners exposed to traffic.



Aluminium Angle Bead with Reinforce Flange

Raw Material Edge Length Pcs/box
Aluminium 3003 32mm 2-3m 80

Hole: 3*10mm

Reinforce flange: 4mm as photo.







32mm Wing 3*10mm Hole 4mm Reinforce Flange Angled Drywall Corner Bead 0
