Hot Dip Galvanized Expanded Metal Rib Lath Building Material 2500MM Length

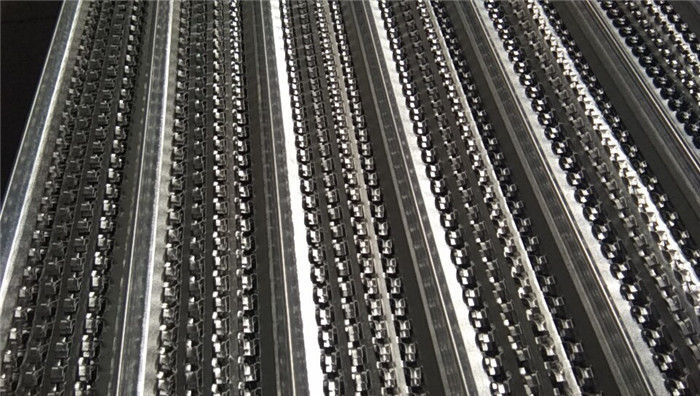

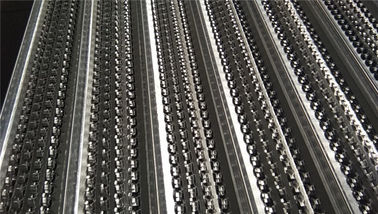

Large Image : Hot Dip Galvanized Expanded Metal Rib Lath Building Material 2500MM Length

Product Details:

Place of Origin:	Hebei
Brand Name:	JIAFU
Certification:	ISO9001, 2000
Model Number:	XTHRM

Payment & Shipping Terms:

Minimum Order Quantity:	500pcs
Packaging Details:	PLATE
Delivery Time:	10Day
Payment Terms:	D/A, D/P, T/T, L/C, Western Union, MoneyGram
Supply Ability:	10000Pcs/Week

Contact Now

Detailed Product Description

Material:	Hot Dip Galvanized	Thinkness:	0.30mm
Width:	450mm	Length:	2500MM
Weight:	2.6Kgs	Rib:	15mm
High Light:	hy rib lath , hy rib formwork

High-Rib Mesh

High-Rib Mesh is an expanded metal sheet product, specifically developed for use as permanent formwork to concrete. The profile of the open mesh, in combination with the tangs, allow the development of dense concrete nodules and indents on the face of the High-Rib, forming an enhanced mechanical key for the second phase pour.

Product Code	Weight kgs/pcs	Width mm	Length mm	Pcs/Bdl	Pcs/pallet
XT-HRM	2.30	450	2200/2500	10	500/1000
	3.00	450	2200/2500	10	500/1000
	3.40	450	2200/2500	10	500/1000
	3.80	450	2200/2500	10	500/1000
