Architectural Building Expanded Metal Lath Mesh Curtain Wall With Fixing L Type Frame

Architectural Building Expanded Metal Lath Mesh Curtain Wall With Fixing L Type Frame
Architectural Building Expanded Metal Lath Mesh Curtain Wall With Fixing L Type Frame Architectural Building Expanded Metal Lath Mesh Curtain Wall With Fixing L Type Frame Architectural Building Expanded Metal Lath Mesh Curtain Wall With Fixing L Type Frame Architectural Building Expanded Metal Lath Mesh Curtain Wall With Fixing L Type Frame Architectural Building Expanded Metal Lath Mesh Curtain Wall With Fixing L Type Frame Architectural Building Expanded Metal Lath Mesh Curtain Wall With Fixing L Type Frame

Large Image :  Architectural Building Expanded Metal Lath Mesh Curtain Wall With Fixing L Type Frame

Product Details:
Place of Origin: China
Brand Name: Jiafu
Model Number: Expanded Mesh
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden cases
Delivery Time: 10DAYS
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 2000M2 PER MONTH
Detailed Product Description
Name: Expanded Mesh Curtain Wall Marerial: AL
Thinckness: 1.5mm Frame Type: L Type,
High Light:

galvanized metal lath

,

diamond metal mesh

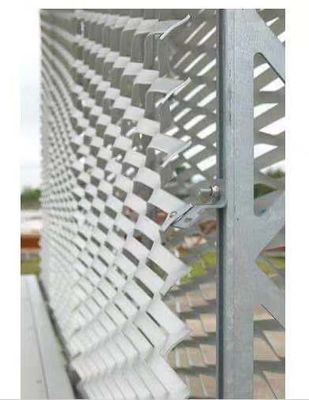

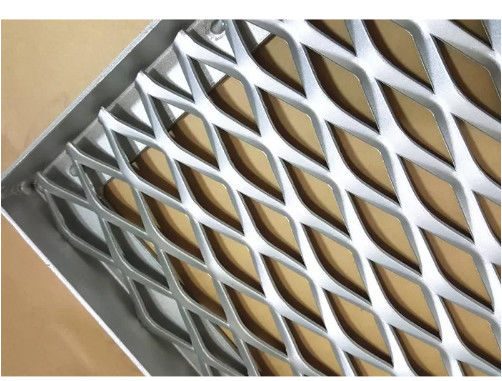

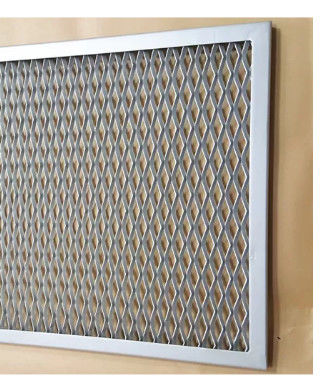

Introduction To The Architectural Building Expanded Mesh Curtain Wall With Fixing L Type Frame



  • Expanded mesh Can be stamped into a variety of products with a variety of metal sheets.
  • All products are produced and processed by advanced computer technology.
  • The hole types are diverse and the arrangement is flexible.
  • In the years of production practice, which can cut, bend and edging the products.
  • Deep processing such as surface treatment.
  • The expanded mesh has the characteristics of uniform mesh, flat mesh surface, high friction coefficient and high strength.
  • It can produce steel mesh products with th ickness of 0.5-3mm. it are also cut and processed to manufacture workpieces.
  •  Specification Of The Architectural Building Expanded Mesh Curtain Wall With Fixing L Type Frame



Short pitch (SWM): The length of the short diamond diagonal from the center of the node to the center of the node.
Long pitch (LWM): The length of the long diamond diagonal from the center of the node to the center of the node.
Short pitch (inner hole) (SWD): the length of the diagonal of a short diamond hole
Long pitch (inner hole) (LWD): the length of the diagonal of a long diamond hole

Straw: The width of the side stalk of the diamond-shaped hole of the stencil is the length of the metal plate used to make a stalk.
Bond: The junction of two silk stems.
Thickness: The thickness of the original sheet steel.



SWDxLWD strand width thickness weight aluminum total thickness open area dimension hmax
mm mm mm kgs/m2 mm % mm
62.5x20(25.5) 9.1 1.5 2.7 11 26 2500
62.5x20(25.5) 9.1 2.0 3.6 11 26

2500



Architectural Building Expanded Metal Lath Mesh Curtain Wall With Fixing L Type Frame 0
