3.39kgs / M2 0.4mm High Ribbed Formwork 20mm Rib Height 2.5m Length For Construction

Certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
I'm Online Chat Now

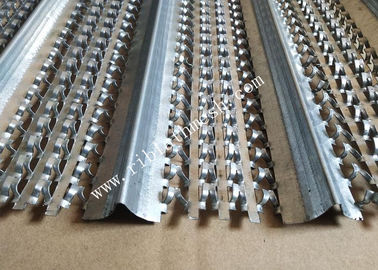

3.39kgs / M2 0.4mm High Ribbed Formwork 20mm Rib Height 2.5m Length For Construction

3.39kgs / M2 0.4mm High Ribbed Formwork 20mm Rib Height 2.5m Length For Construction
3.39kgs / M2 0.4mm High Ribbed Formwork 20mm Rib Height 2.5m Length For Construction

Large Image :  3.39kgs / M2 0.4mm High Ribbed Formwork 20mm Rib Height 2.5m Length For Construction

Product Details:
Place of Origin: ANPING HEBEI CHINA
Brand Name: Jiafu
Model Number: XTH1903
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Packaging Details: 500 OR 100PCS/PALLET
Delivery Time: 10-15DAYS
Supply Ability: 3000PCS/DAY
Detailed Product Description
Width: 450MM Length: 1-4M
Rib Height: 19MM Hole: 5*10MM
Material: Galvanized Sheet Rib Distance: 90mm
High Light:

high rib mesh

,

high rib sheet

3.39kgs/m2 0.4mm High Ribbed Formwork 20mm Rib Height 2.5m Length For Construction

High Ribbed Formwork is an expanded metal sheet product, specifically developed for use as permanent formwork to concrete. The profile of the open mesh, in combination with the High Ribbed Formwork, allow the development of dense concrete nodules and indents on the face of the Hig Ribbed Forwork, forming an enhanced mechanical key for the second phase pour. In the case of visible elements, the resulting High Ribbed Formwork surface is suitable to receive a rendered or tiled finish.It provide a lighter and stiffer slab than an equivalent flat slab, reducing the extend of foundations. They provide a very good form where slab vibration is an issue, such as laboratories and hospitals.They are made up of wide band beams running between columns with equal depth narrow ribs spanning the orthogonal direction. A thick top slab completes the system.



Specification of High Ribbed Formwork



Width: 450mm

Length: 1m-3m
Thickness:0.15mm,0.2mm,0.25mm,0.3mm,0.35mm ,0.40mm,0.57mm






Material Thickness Rib hight Rib Distance Width Length
Zinc Plate 0.5mm 20mm 90mm 450mm 1-3m







Features of High Ribbed Formwork



Because its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free form work.



3.39kgs / M2 0.4mm High Ribbed Formwork 20mm Rib Height 2.5m Length For Construction 0
