| NAME: | RIB LATH | USED: | In Construction |
|---|---|---|---|
| Width: | 600mm | Length: | 2-3m |
| Hole: | 7*20mm | Material: | Galvanized Plate |
| High Light: | flat rib lath,rib lath cladding |
||

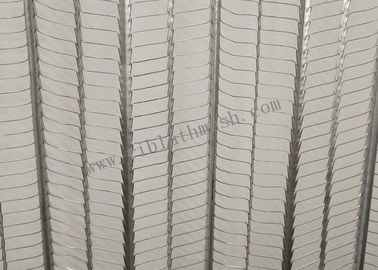

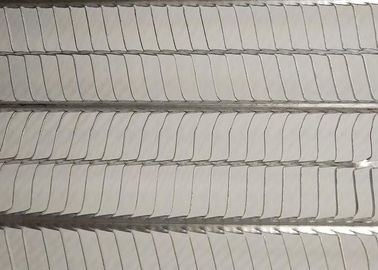

JF0704 is one type of Rib Lath Mesh.This size the hole is :7*0mm.Rib Lath Mesh is extensively used in construction of civil building, industrial building, construction under the water like banks, ponds, infrastructure engineering as well as municipal works. Rib Lath works well with other construction materials to save both cost and energy.
Specification:
We could produce the thickness: 0.2-0.4mm. The very popular thickness is: 0.3mm
| TYPE | THICKNESS(MM) | SW*LW(mm) | Tendons High(mm) | Reinforcement Distance(mm) | Width(MM) |
| JF0704 | 0.20-0.40 | 7×20 | 5 | 100 | 600 |
Characteristics of products/Feature
Rib Lath Features Compared with Other Metal Laths:
- It is easy to cut and form to ornamental plaster work.
- It provides ample keying for scratch coat.
- It is commonly used for plaster machine application.
- It gives a uniform coat depth for large area
Manufacturing process
Made up by Stamping and stretching the metal sheet, elegant appearance, sturdiness and durability
