20cm Width Galvanized Wire Mesh For Brick Wall 16*28mm Hole 15m Length

Certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
I'm Online Chat Now

20cm Width Galvanized Wire Mesh For Brick Wall 16*28mm Hole 15m Length

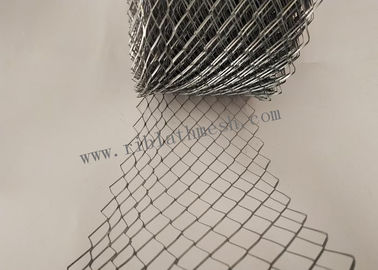

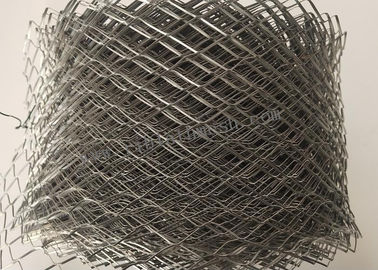

20cm Width Galvanized Wire Mesh For Brick Wall 16*28mm Hole 15m Length
20cm Width Galvanized Wire Mesh For Brick Wall 16*28mm Hole 15m Length 20cm Width Galvanized Wire Mesh For Brick Wall 16*28mm Hole 15m Length

Large Image :  20cm Width Galvanized Wire Mesh For Brick Wall 16*28mm Hole 15m Length

Product Details:
Place of Origin: ANPING HEBEI CHINA
Brand Name: JiaFu
Model Number: JFBRS380
Payment & Shipping Terms:
Minimum Order Quantity: 500m2
Packaging Details: CARTON OR PALLET
Delivery Time: 15-20
Supply Ability: 5000M2/DAY
Detailed Product Description
MATERIAL: Galvanized Plate Name: Brick Wall Mesh
Thickness: 0.35mm Length: 10-100m
Width: 10cm-20cm Weight: 380g/m2
High Light:

brick wall reinforcing mesh

,

brick wire mesh



20cm Width Galvanized Brick Wall Mesh 16*28mm Hole 15m Length



Brick Rinforce Mesh is Made of the Hot Dipped Plate.We could produce the length from 10m-100m.It for use primarily as an anti-cracking reinforcement in the construction of brick and block masonry. Coil mesh is available in a variety of widths to suit most wall constructions and is supplied coiled for ease of handling. Additional applications include strengthening cornices, low walls and balconies over door and window openings.We could produce the Weight:480g and 380g/m2.



Specification:



Hole Size"12*25mm And 16*28mm

Width:75mm-300mm

Length:10m-100m



Coil width
(mm)
Coil Length
(m)
Material
75 10-100 Galvanised
100 10-100 Galvanised
150 10-100 Galvanised
200 10-100 Galvanised
250 10-100 Galvanised



Installation



The coil mesh is laid in strips between brick or block courses leaving approximately 25mm clearance from the faces of the work. Where coil mesh joins are required, ensure they overlap by at least 75mm. The reinforcement is then simply embedded in the mortar for the next course.



In most instances, application ever y third course, for the full length of the wall, will be sufficient.

To reinforce brickwork at an opening, e.g. window or door, mesh should be installed to overlap part of the opening, and part of the solid wall.



Thinking of the width of the opening, lay the mesh approximately a quarter of the way across the opening. The mesh should lie the same distance again, across the solid wall.

20cm Width Galvanized Wire Mesh For Brick Wall 16*28mm Hole 15m Length 0
