2.4m Length High Ribbed Formwork 3.39kgs / M2 Construction 0.45m Width

Name: 2.4m Length High Ribbed Formwork 3.39kgs / M2 Construction 0.45m Width
Brand: JiaFu
SKU: JFH19
Price: 1 USD
Availability: InStock
Rating: 4.9 (183 reviews)

Large Image : 2.4m Length High Ribbed Formwork 3.39kgs / M2 Construction 0.45m Width

Product Details:

Place of Origin:	ANPING HEBEI CHINA
Brand Name:	JiaFu
Model Number:	JFH19

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Packaging Details:	500 OR 1000PCS/PALLET
Delivery Time:	10-15DAYS
Supply Ability:	5000PCS/DAY

Contact Now

Detailed Product Description

Name:	High Ribbed Formwork	LENGTH:	1-4M
RIB HEIGHT:	15MM	HOLE:	5*10MM
MATERIAL:	GALVANIZED PLATE	Width:	450mm
High Light:	high rib mesh , high rib sheet

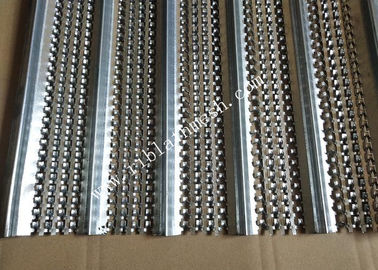

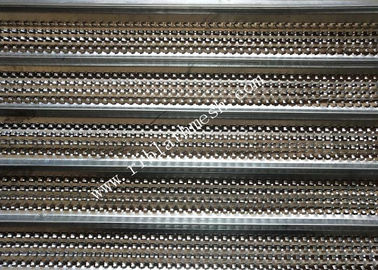

2.4m Length 3.39kgs/m2 Construction High Ribbed Formwork 0.45m Width

High Ribbed Formwork is manufactured from hot-dipped galvanized steel sheets.we can produce the goods thickness from 0.2mm-0.57mm. Because its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free form work.

High Ribbed Formwork is made of the hot dipped plate.The width is :0.45mm,Length from 1m-4m.Hole:5*10mm

Model	Thickness (mm)	Weight (kg)	Width (mm)	Length (mm)	Rib Height (mm)	Rib Distance(mm)
018	0.18	1.35	450	2200	15	90
021	0.21	1.60	450	2200	15	90
023	0.23	1.70	450	2200	15	90
025	0.25	1.90	450	2200	15	90
030	0.30	2.45	450	2200	15	90
035	0.35	2.90	450	2200	15	90
0.40	0.40	3.30	450	2200	15	90

2.4m Length High Ribbed Formwork 3.39kgs / M2 Construction 0.45m Width 0
