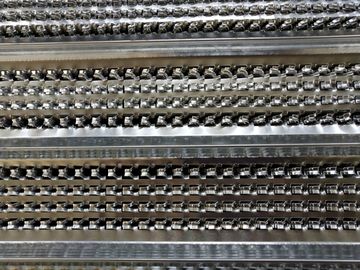

Valve System HY Rib Sheet 14mm -20mm Height Convenient For Construction

Valve System HY Rib Sheet 14mm -20mm Height Convenient For Construction
Valve System HY Rib Sheet 14mm -20mm Height Convenient For Construction

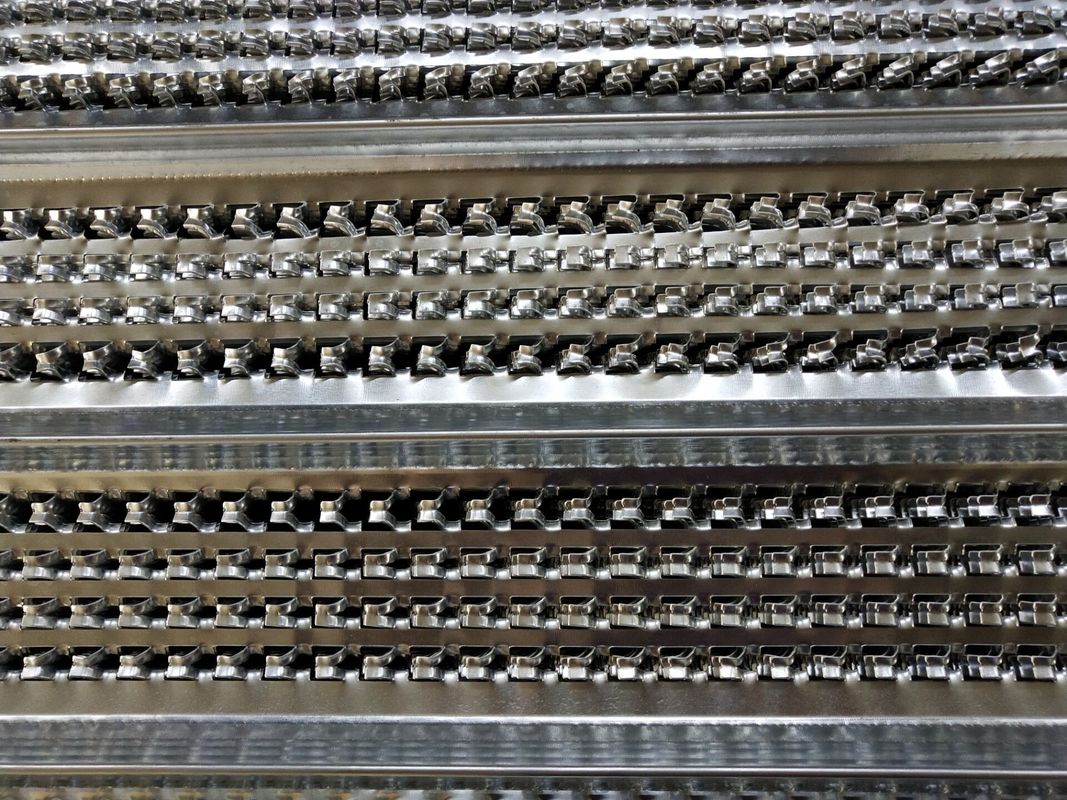

Large Image :  Valve System HY Rib Sheet 14mm -20mm Height Convenient For Construction

Product Details:
Place of Origin: China
Brand Name: jiafu
Model Number: HB019
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: 1.5-2.5$/sheet
Packaging Details: Pallet
Delivery Time: 10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000/day
Detailed Product Description
Galvanized Steel, Aluminium, Stainless Steel: Galvanized Steel, Aluminium, Stainless Steel Name: HY Rib Mesh
Origin: China Model: HB019
High Light:

hy rib lath

,

hy rib sheet

HI-RIB Mesh(High rib)/Expanded Rib Lath(direct factory)

Widely used as a plaster backing on ceilings, walls and stud partitions. Rib mesh is also
ideal for refurbishing damaged or aged masonry walls when a key for rendering is not
certain due to disintegration or softening of the wall face.


1. Material: Hot-dipped galvanized sheet
2. Application:
1). Construction formwork mesh has very good engineering quality and construction security;
2). Construction formwork mesh as the concrete permanent assembly
free sheet is much convenient for engineering design and processing;
3). Construction formwork mesh is widely used in tunnels, bridges and valve system and so on
to make the process of construction much more fast and stable.

3. Specification

Model

Thickness
(mm)

Weight (kg) Width (mm) Length (mm) Rib Height(mm)

Rib Distance
(mm)

021 0.21 1.70 450 2200 14-20 90
023 0.23 1.90 450 2200 14-20 90
030 0.30 2.48 450 2200 14-20 90
035 0.35 2.90 450 2200 14-20 90
040 0.40 3.30 450 2200 14-20 90
045 0.45 3.70 450 2200 14-20 90
050 0.50 4.10 450 2200 14-20

90

Installation : Hi-rib lath is ideal for refurbishing damaged or aged masonry walls, when a key for rendering is not certain due to disintegration or softening of the wall face. Lath should be fixed with apexes of ribs against the wall, edge ribs of sheets nesting into each other should be wire-tied every 15cm and ends of sheets should be lapped not less than 2.5cm and nesting ribs securely tied together.

A correctly formed Hy-rib joint outperforms traditionally prepared joints in shear and bond. Hy-rib reduces the risk of trapped air and voids withint the concrete.

Stainless steel fixings should be used at sufficient intervals to hold the lath firmly in position.
