ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Width: | 450MM | Length: | 1-4M |
|---|---|---|---|
| Rib Height: | 15MM | Hole: | 5*10MM |
| Material: | Galvanized Sheet | Rib Distance: | 90mm |
| High Light: | hy rib lath,hy rib sheet |
||

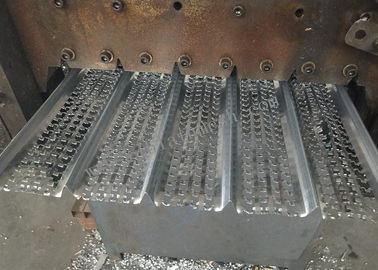

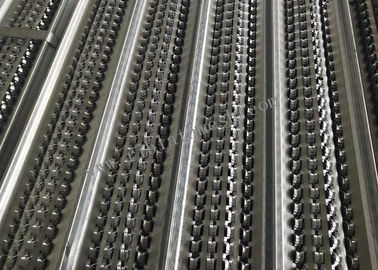

Hy Rib Mesh is made of hot dipped galvanized sheet .We can produce the rib height:16mm and 21mm.The follows is the weight for the Rib Height 21mm for your reference:
| Model | Thickness (mm) | Weight (kg) | Width (mm) | Length (mm) | Rib Height (mm) | Rib Distance(mm) |
| 2021 | 0.21 | 1.70 | 450 | 2200 | 21 | 90 |
| 2023 | 0.23 | 1.90 | 450 | 2200 | 21 | 90 |
| 2025 | 0.25 | 2.10 | 450 | 2200 | 21 | 90 |
| 2030 | 0.30 | 2.50 | 450 | 2200 | 21 | 90 |
| 2035 | 0.35 | 2.90 | 450 | 2200 | 21 | 90 |
| 2040 | 0.40 | 3.40 | 450 | 2200 | 21 | 90 |
| 2045 | 0.45 | 3.80 | 450 | 2200 | 21 | 90 |
| 2050 | 0.50 | 4.10 | 450 | 2200 | 21 | 90 |
| 2057 | 0.57 | 4.70 | 450 | 2200 | 21 | 90 |
Features of High Ribbed Formwork
Because its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free form work.
