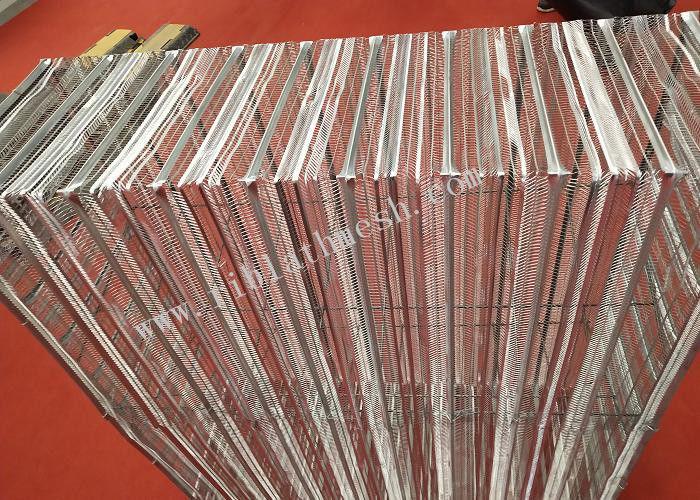

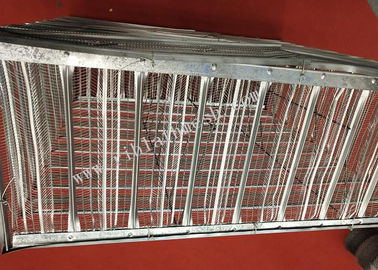

0.4mm Thickness Galvanized Rib Lath Mesh Box 900mm * 900mm * 300mm

Certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
I'm Online Chat Now

0.4mm Thickness Galvanized Rib Lath Mesh Box 900mm * 900mm * 300mm

0.4mm Thickness Galvanized Rib Lath Mesh Box 900mm * 900mm * 300mm
0.4mm Thickness Galvanized Rib Lath Mesh Box 900mm * 900mm * 300mm 0.4mm Thickness Galvanized Rib Lath Mesh Box 900mm * 900mm * 300mm

Large Image :  0.4mm Thickness Galvanized Rib Lath Mesh Box 900mm * 900mm * 300mm

Product Details:
Place of Origin: ANPING HEBEI CHINA
Brand Name: JiaFu
Model Number: JFRB03
Payment & Shipping Terms:
Minimum Order Quantity: 500
Packaging Details: PALLET
Delivery Time: 15-20
Supply Ability: 1000PCS/DAY
Detailed Product Description
SIZE:: LESS THAN 900MM Hole: 4.5*10mm
Thickness: 0.3-0.4mm Color: Silver
Material: Galvanized Plate Packing: Pallet
High Light:

flat rib lath

,

rib lath cladding



0.4mm Thickness Galvanized Rib Lath Mesh Box 900mm*900mm*300mm



Rib Lath box is made by JF1008 rib lath Mesh .The rib lath mesh made by high quality galvanized coil plate.The hole size:4.5*10mm.The mesh after drawing, molding, welding and other processes .with the weight between 8 kg and 20Kg.The new steel mesh cage is made of cast-in-place hollow floor with steel mesh box, with low construction cost, fast construction speed and hollow ratio between 30% and 70%.Can be designed as "work" beam force, can also be designed as "T" beam force.Box specifications more, all kinds of column distance hollow board, have a suitable box size, the bottom plate all cast-in-place, very flat.

The steel cage system can be used to make the reinforced concrete of the floor with a high degree of industrialization and the steel mesh box body has good compatibility. It is free from isolation and pad blocks, convenient for transportation and installation, and can reduce the buoyancy and control the displacement during the construction pouring.



General specification:



Width*Length: 300*500mm, 500*500mm, 600*600mm, 700*700mm, 800*800mm , 900*900mm

Height:100mm-900mm

Thickness:0.3mm, 0.35mm, 0.4mm

Hole size: 4.5*10mm

0.4mm Thickness Galvanized Rib Lath Mesh Box 900mm * 900mm * 300mm 0
