Product Details:
Payment & Shipping Terms:
|

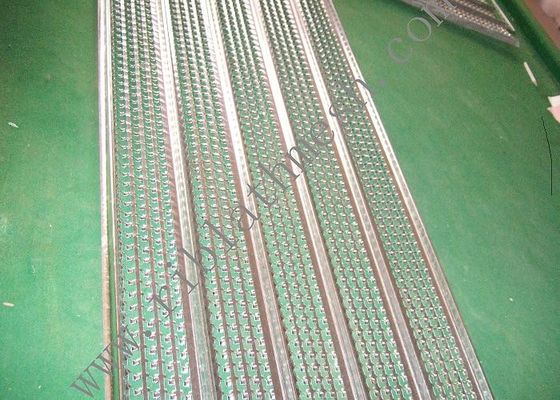

Name: | Galvanized Hy Rib Mesh | LENGTH: | 1-4M |
---|---|---|---|
RIB HEIGHT: | 15MM | HOLE: | 5*10MM |
MATERIAL: | GALVANIZED PLATE | Width: | 450mm |
High Light: | 5*10mm hy rib formwork,2.2m hy rib formwork,15mm hy rib formwork |
High Ribbed Formwork has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free form work
Material:
Galvanized Hy Rib Mesh is manufactured from hot-dipped galvanized steel sheets.
.
Specification:
Width: 450mm
Length: 1-4m
Hole : 5*10mm
Model | Thickness (mm) | Weight (kg) | Width (mm) | Length (mm) | Rib Height (mm) | Rib Distance(mm) |
018 | 0.18 | 1.35 | 450 | 2200 | 15 | 90 |
021 | 0.21 | 1.60 | 450 | 2200 | 15 | 90 |
023 | 0.23 | 1.70 | 450 | 2200 | 15 | 90 |
025 | 0.25 | 1.90 | 450 | 2200 | 15 | 90 |
030 | 0.30 | 2.45 | 450 | 2200 | 15 | 90 |
035 | 0.35 | 2.90 | 450 | 2200 | 15 | 90 |
0.40 | 0.40 | 3.30 | 450 | 2200 | 15 | 90 |
Feather:
Because its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath.
