0.25mm Thickness Galvanized High Ribbed Formwork 0.45m Width

Certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
I'm Online Chat Now

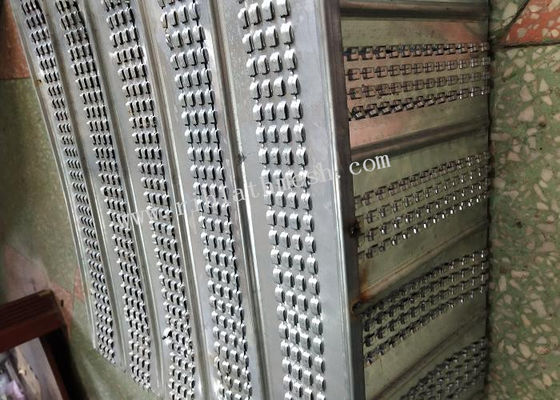

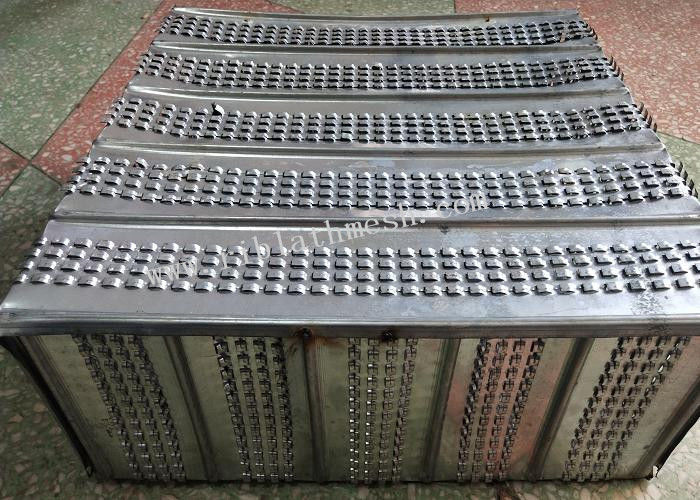

0.25mm Thickness Galvanized High Ribbed Formwork 0.45m Width

0.25mm Thickness Galvanized High Ribbed Formwork 0.45m Width
0.25mm Thickness Galvanized High Ribbed Formwork 0.45m Width 0.25mm Thickness Galvanized High Ribbed Formwork 0.45m Width

Large Image :  0.25mm Thickness Galvanized High Ribbed Formwork 0.45m Width

Product Details:
Place of Origin: ANPING HEBEI CHINA
Brand Name: JiaFu
Model Number: JFHR045
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Packaging Details: 500 or 1000pcs/pallet
Delivery Time: 15-20days
Supply Ability: 5000pcs/day
Detailed Product Description
Material: GALVANIZE PLATE Width: 0.45M
Length: 2-3M Rib Height: 14-20mm
Thickness: 0.18-0.57mm Color: Silver
High Light:

Galvanized High Ribbed Formwork

,

0.25mm High Ribbed Formwork

,

0.45m High Ribbed Formwork

0.25mm Thickness Galvanized High Ribbed Formwork Box For Building0.45m Width



High Ribbed Formwork is made from the High Ribbed Formwork.It's used for the building.


High Ribbed Formwork is made of the hot-dipped galvanized steel sheets.2.2m ,2.5m,3m length are the popular length in the world market.The 0.20mm thickness goods is very popular in the Southest Asia market.Its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality, construction security






High Ribbed Formwork Specification:

model Thickness (mm) Weight (kg) Width (mm) Length (mm) Rib Height (mm) Rib Distance(mm)
021 0.21 1.70 450 2200 14-20 90
023 0.23 1.90 450 2200 14-20 90
030 0.30 2.48 450 2200 14-20 90
035 0.35 2.90 450 2200 14-20 90
040 0.40 3.30 450 2200 14-20 90
045 0.45 3.70 450 2200 14-20 90
050 0.50 4.10 450 2200 14-20 90




 0.25mm Thickness Galvanized High Ribbed Formwork 0.45m Width 0
