40m Length 15cm Width 2.7kgs/Roll Brickwork Reinforce Mesh

Certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
I'm Online Chat Now

40m Length 15cm Width 2.7kgs/Roll Brickwork Reinforce Mesh

40m Length 15cm Width 2.7kgs/Roll Brickwork Reinforce Mesh
40m Length 15cm Width 2.7kgs/Roll Brickwork Reinforce Mesh

Large Image :  40m Length 15cm Width 2.7kgs/Roll Brickwork Reinforce Mesh

Product Details:
Place of Origin: ANPING HEBEI CHINA
Brand Name: JiaFu
Model Number: JFBRS380
Payment & Shipping Terms:
Minimum Order Quantity: 500m2
Packaging Details: CARTON OR PALLET
Delivery Time: 15-20
Supply Ability: 5000M2/DAY
Detailed Product Description
MATERIAL: Galvanized Plate Name: Brick Wall Mesh
Thickness: 0.38mm Length: 10-100m
Width: 10cm,15cm,20cm Weight: 450g/m2
High Light:

40m Brickwork Reinforce Mesh

,

15cm Brickwork Reinforce Mesh

,

2.7kgs/Roll Brickwork Reinforce Mesh

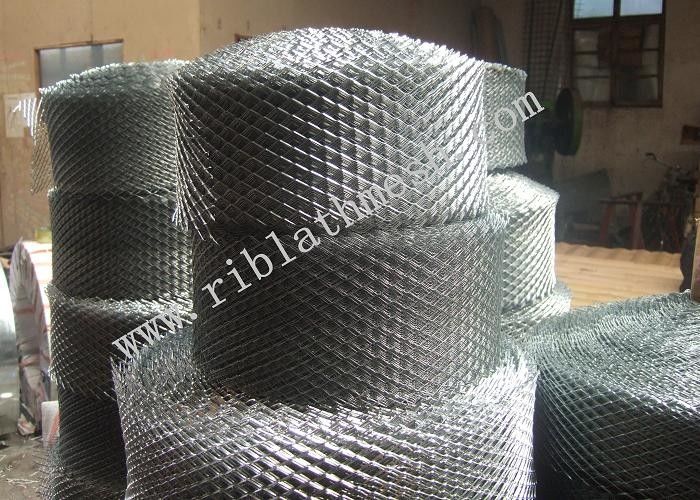

40m Length Anti - Cracking Brickwork Reinforce Mesh 15cm Width 2.7kgs/roll





Embedded in the normal thickness of a brickwork joint, expanded metal reinforcement reduces the detrimental effects of vibration and changes of temperature. The application gives brickwork increased resistance to tensional stresses. The brickwork reinforcement (coil mesh) assists resistance to tensile stresses where settlement occurs. Easily incorporated into mortar course, coiled for ease of handing.



Applications:


concrete slabbing, roads, paving, foundations, marine work, bank strong rooms, partition slabs, concrete block work, asphalt guttering etc

.
Installation:


Fix into mortar between brick courses leaving 25mm clearance from face of brickwork. All joints require an overlap of at least 75mm. The mesh can be laid every third brickwork course for most reinforcement.


Material:


Galvanized steel, stainless steel

Specification:



Hole Type: Diamond

Hole Size: 12*25mm

width: 6.5cm,8cm,10cm, 15cm, 20cm

Length: 10m-100m



Hole size Thickness Width Length
12*25mm 0.38mm 6.5-20cm 10-100m
