0.35MM Galvanized 15m Brick Reinforcement Mesh

Certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
I'm Online Chat Now

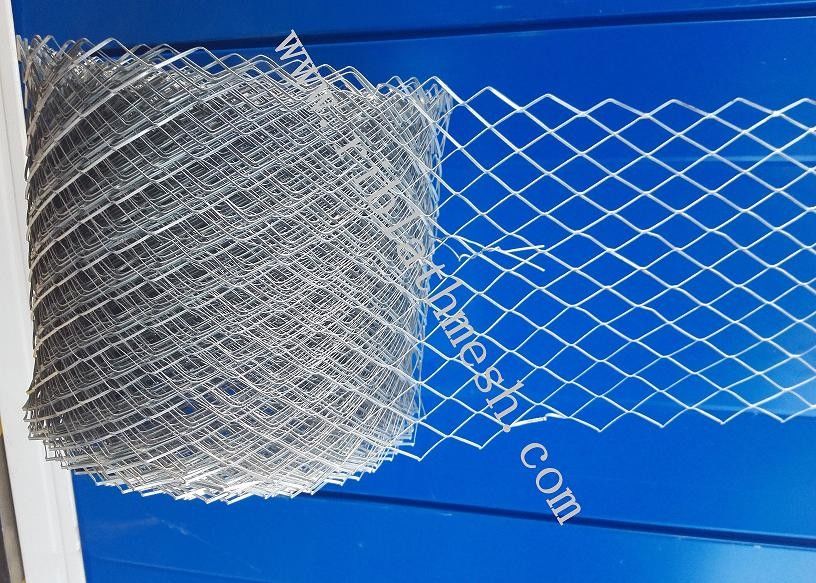

0.35MM Galvanized 15m Brick Reinforcement Mesh

0.35MM Galvanized 15m Brick Reinforcement Mesh
0.35MM Galvanized 15m Brick Reinforcement Mesh

Large Image :  0.35MM Galvanized 15m Brick Reinforcement Mesh

Product Details:
Place of Origin: ANPING HEBEI CHINA
Brand Name: JIAFU
Model Number: XTBRS380
Payment & Shipping Terms:
Minimum Order Quantity: 500m2
Packaging Details: CARTON OR PALLET
Delivery Time: 15-20
Supply Ability: 5000M2/DAY
Detailed Product Description
MATERIAL: Galvanized Plate Name: Brickwork Reinforcement Mesh
Thickness: 0.35mm Length: 10-100m
Width: 10cm-30cm Weight: 380/m2
High Light:

0.35mm brick reinforcement mesh

,

15m brick reinforcement mesh

,

Galvanized brick reinforcement mesh

0.35MM Thickness Galvanized Brickwork Reinforcement Mesh 15m Length



Brickwork Reinforcement Mesh are produced for brick and block work reinforcement.Their primary uasge is to prevent cracking, embedded in the normal thickness of a brickwork joint, brick reinforcement meshes reduce the detrimental effects of vibration and changes of temperature. Brick reinforcement meshes increase resistance to tensional stress.



Material:



Galvanized plate





Specification:



Hole Type: Diamond

Hole Size: 16*28mm Llike the photo

width: 10cm, 15cm, 20cm,30cm

Length: 10m-100m

Hole Type Hole Size Width Length
Diamond 16*28mm 10cm-30cm 10-100m









How to Install  Brickwork Reinforcement Mesh:

The coil mesh is laid in strips between brick or block courses leaving approximately 25mm clearance from the faces of the work. Where coil mesh joins are required, ensure they overlap by at least 75mm.

The reinforcement is then simply embedded in the mortar for the next course.

In most instances, application every third course, for the full length of the wall, will be sufficient.

To reinforce brickwork at an opening, e.g. window or door, mesh should be installed to overlap part of the opening, and part of the solid wall.

Thinking of the width of the opening, lay the mesh approximately a quarter of the way across the opening. The mesh should lie the same distance again, across the solid wall.

Above windows or doors, install Catnic mesh for 2-3 courses, starting from the course above the lintel .
