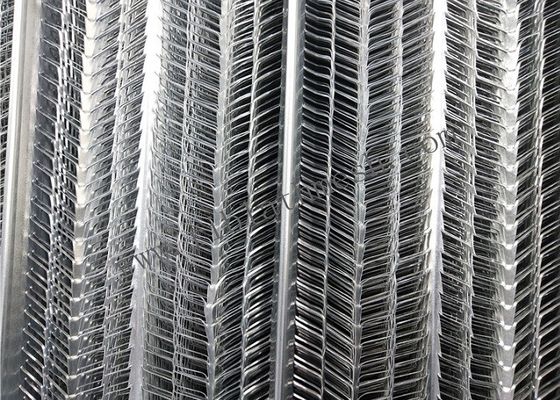

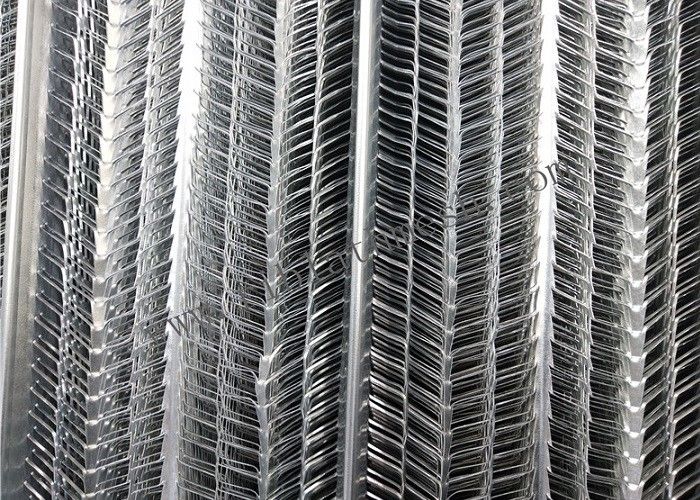

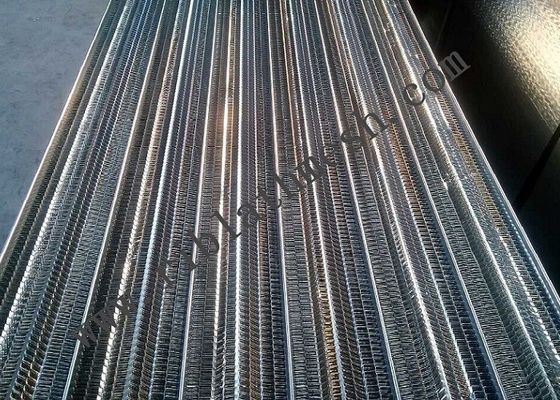

Galvanised 0.26mm Thickness 2m Length Rib Lath Mesh

Galvanised 0.26mm Thickness 2m Length Rib Lath Mesh
Galvanised 0.26mm Thickness 2m Length Rib Lath Mesh Galvanised 0.26mm Thickness 2m Length Rib Lath Mesh

Large Image :  Galvanised 0.26mm Thickness 2m Length Rib Lath Mesh

Product Details:
Place of Origin: ANPING HEBEI CHINA
Brand Name: Jiafu
Model Number: JF0708
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Packaging Details: 700pcs/pallet
Delivery Time: 15-20days
Supply Ability: 5 containers /month
Detailed Product Description
Width: 600mm Hole: 8*12mm
Length: 1-3m Rib Height: 8mm
Material: Galvaninzed Plate Rib Distance: 100mm
High Light:

Galvanised Rib Lath Mesh

,

0.26mm Thickness Rib Lath Mesh

,

2m Length Rib Lath Mesh

600mm Width Galvanized Rib Lath Mesh 0.26mm thickness 2m Length



Rib Lath Mesh  is a kind of expanded metal . Rib Lath offers special extension due to its special opening and the uniform V type reinforced structure in the surface. Rib Lath is extensively used in construction of civil building, industrial building, construction under the water like banks, ponds, infrastructure engineering as well as municipal works. Rib Lath works well with other construction materials to save both cost and energy.



Size:



TYPE THICKNESS(MM) SW*LW(mm) Tendons High(mm) Reinforcement Distance(mm) Width(MM)
JF0708 0.3mm 8*12 8 100 600

700pcs/pallet popular length: 2.1m,2.2m,2.4m



Application:


1.widely used as a plastering backing on ceilings, walls, stud partitions.

2.rib lath is also ideal for refurbishing damaged or aged masonry walls when a key for rendering is not firm due to disintegration of softening of the wall face.

3.With stronger ribs, it is widely applied to concrete structure of projects, it has better stress strength and free shapes, mostly used as concrete permanent dismantle free template for civil engineering





Feature:

Easy to handle due to the light-weighted subsidiary materials
Improve the work efficiency
Easy to dismantly
Quick refilling-up
Easy to bend into round form or right-angled side
Curved surface
Strengthening the level of adhesion through wire-net of skeleton surface
Preventing the crack of plastering surface
No prime plastering required
Nearly none of wastes after construction
Easy clear and clean the site
