Product Details:
Payment & Shipping Terms:
|
| Width: | 500-900mm | Hole: | 5*11mm |
|---|---|---|---|
| Length: | 1-3m | Rib Height: | 9mm |
| Material: | Galvaninzed Plate | Rib Distance: | 100mm |
| High Light: | 800mm Width Rib Lath Mesh,9mm Height Rib Lath Mesh,0.3mm Rib Lath Mesh |
||

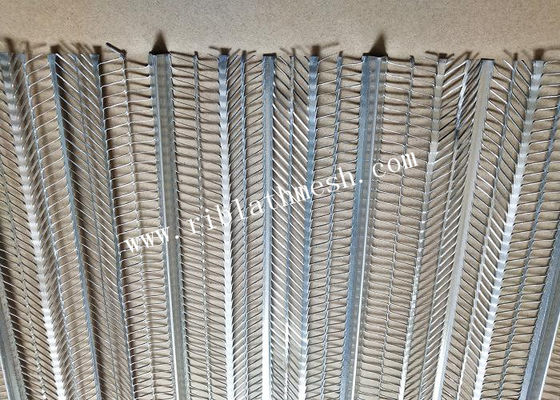

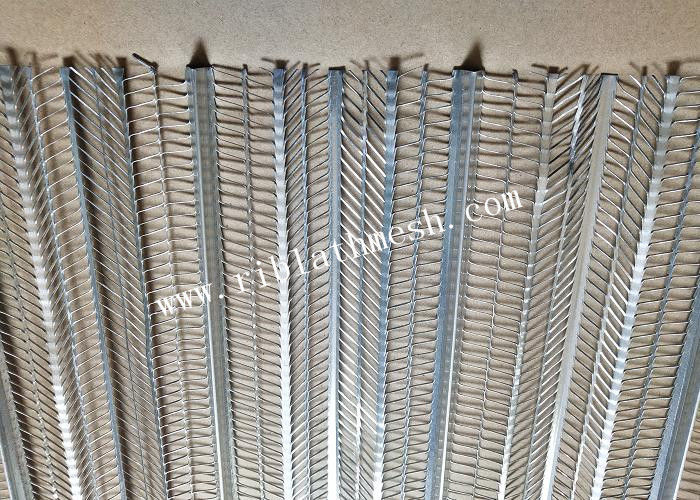

800mm Width 9mm Rib Height Galvanized Rib Lath Mesh JFT1008 0.3mm Thickness
JF1008 is one type of the Rib Lath Mesh .The rib height is 9mm.We can produce the max width 900mm.Rib Lath offers special extension due to its special opening and the uniform V type reinforced structure in the surface. Rib Lath is extensively used in construction of civil building, industrial building, construction under the water like banks, ponds, infrastructure engineering as well as municipal works. Rib Lath works well with other construction materials to save both cost and energy.
Material:
Galvanized Steel Plate
Specification
Width:500mm,600mm,700mm,800mm,900mm
Thickness:0.3-0.4mm
Hole size:5*11mm
Tendons Height:9mm
Length:1-3m
| TYPE | THICKNESS(MM) | SW*LW(mm) | Tendons Height(mm) | Reinforcement Distance(mm) | Width(MM) |
| JF1008 | 0.3mm-0.4mm | 5*11 | 9 | 100 | 500-900mm |
Application:
Widely used as a background for plaster, render, stucco application in construction of suspended ceilings partition.
Feature:
Rib Lath offers special extension due to its special opening and the uniform V type reinforced structure in the surface.
