| Name: | HY Rib Mesh | WIDTH: | 0.45M |
|---|---|---|---|
| LENGTH: | 2-3M | Rib Height: | 21mm,15mm |
| Thickness: | 0.2-0.4mm | MATERIAL: | Galvanized Plate |
| High Light: | 0.45m width hy rib mesh,3m length hy rib mesh,tunnels bridges hy rib mesh |
||
3m Length Width Galvanized Hy Rib Mesh 0.45m Width For Tunnels Bridges

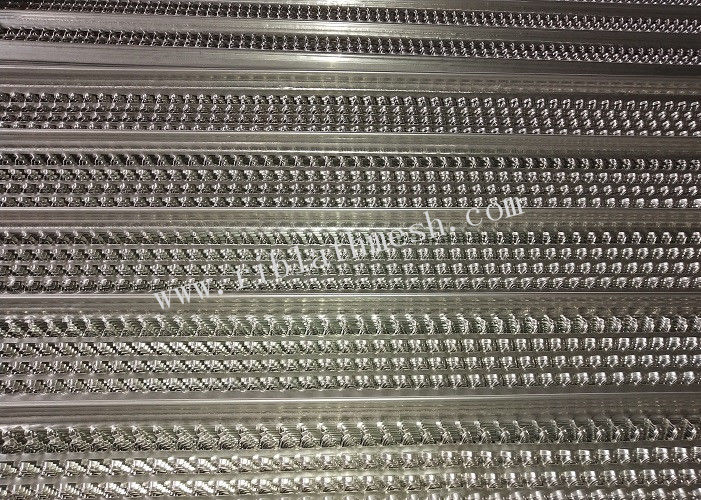

Hy Rib Mesh is a specially designed expanded metal lath for the construction of suspended ceilings and stud wall partitions.This lath has an integral stiffening ribs rolled-formed during manufacturing. The mesh areas of the lath are expanded.The Rib Lath is easy to handle and can be cut with handshears and bent to the required angles.
Material:
Galvanized plate .
Specification:
The follows is the 15mm Height specification for you reference:
| Model | Thickness (mm) | Weight (kg) | Width (mm) | Length (mm) | Rib Height (mm) | Rib Distance(mm) |
| 021 | 0.21 | 1.70 | 450 | 2200 | 14-20 | 90 |
| 023 | 0.23 | 1.90 | 450 | 2200 | 14-20 | 90 |
| 030 | 0.30 | 2.48 | 450 | 2200 | 14-20 | 90 |
| 035 | 0.35 | 2.90 | 450 | 2200 | 14-20 | 90 |
| 040 | 0.40 | 3.30 | 450 | 2200 | 14-20 | 90 |
| 045 | 0.45 | 3.70 | 450 | 2200 | 14-20 | 90 |
| 050 | 0.50 | 4.10 | 450 | 2200 | 14-20 | 90 |
Feature
Hy Rib Mesh has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free form work.
