15m Length 15cm Width Brick Wall Mesh As Anti Cracking Reinforcement

Certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
I'm Online Chat Now

15m Length 15cm Width Brick Wall Mesh As Anti Cracking Reinforcement

15m Length 15cm Width Brick Wall Mesh As Anti Cracking Reinforcement
15m Length 15cm Width Brick Wall Mesh As Anti Cracking Reinforcement

Large Image :  15m Length 15cm Width Brick Wall Mesh As Anti Cracking Reinforcement

Product Details:
Place of Origin: ANPING HEBEI CHINA
Brand Name: XINGTAI
Model Number: XTBR480
Payment & Shipping Terms:
Minimum Order Quantity: 5000M2
Packaging Details: CARTON OR PALLET
Delivery Time: 15-20
Supply Ability: 5000M2/DAY
Detailed Product Description
Name: Brickwork Reinforcement Mesh Material: Galvanized Sheet
Thickness: 0.35mm Length: 10-100m
Width: 10cm-30cm Weight: 480g/m2
High Light:

15m Length brick wall mesh

,

15cm Width brick wall mesh

,

Reinforcement brick wall mesh

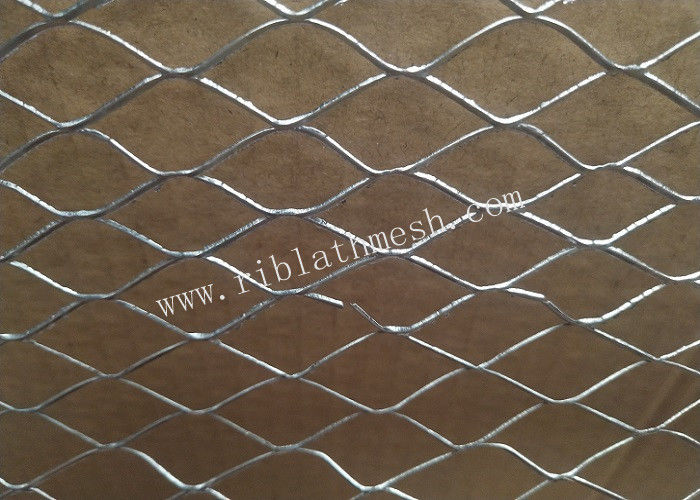

15m Length Brick Wire Mesh 15cm Width As Anti - Cracking Reinforcement



Brick Wall Mesh for use primarily as an anti-cracking reinforcement in the construction of brick and block masonry.We can produce the Width from 7.5cm-20cm.This Type the Weight is 480g/m2 . It is available in a variety of widths to suit most wall constructions and is supplied coiled for ease of handling. Additional applications include strengthening cornices, low walls and balconies over door and window openings.And we could make the length by your need.



Hole Type: Diamond

Hole Size: 12*25mm

width: 7.5cm,10cm,15cm,20cm

Length: 10m-100m

Hole Type Hole size width Length
Diamond 12*25mm 7.5cm,10cm,15cm,20cm 10-100m





packing: by carton or pallet



How to Install  Brickwork Reinforcement Mesh?

The coil mesh is laid in strips between brick or block courses leaving approximately 25mm clearance from the faces of the work. Where coil mesh joins are required, ensure they overlap by at least 75mm.

The reinforcement is then simply embedded in the mortar for the next course.

In most instances, application every third course, for the full length of the wall, will be sufficient.

To reinforce brickwork at an opening, e.g. window or door, mesh should be installed to overlap part of the opening, and part of the solid wall.

Thinking of the width of the opening, lay the mesh approximately a quarter of the way across the opening. The mesh should lie the same distance again, across the solid wall.

Above windows or doors, install Catnic mesh for 2-3 courses, starting from the course above the lintel as shown below

15m Length 15cm Width Brick Wall Mesh As Anti Cracking Reinforcement 0
