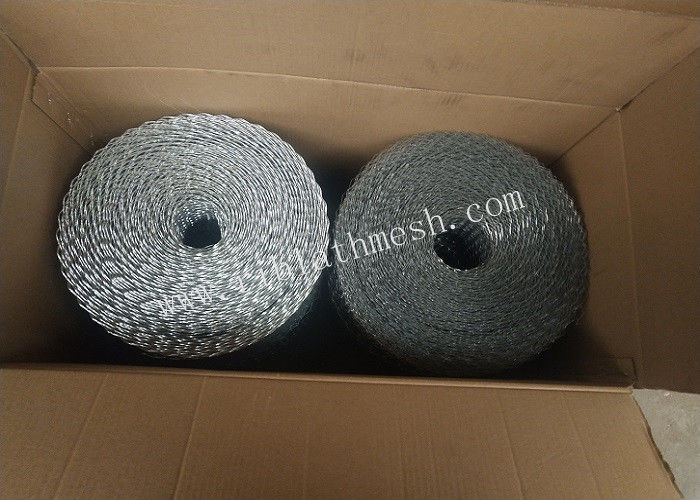

95m Length Construction 10cm Width Brick Wall Mesh

Certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
I'm Online Chat Now

95m Length Construction 10cm Width Brick Wall Mesh

95m Length Construction 10cm Width Brick Wall Mesh
95m Length Construction 10cm Width Brick Wall Mesh

Large Image :  95m Length Construction 10cm Width Brick Wall Mesh

Product Details:

Place of Origin: ANPING HEBEI CHINA
Brand Name: JIAFU
Model Number: JFB050

Payment & Shipping Terms:

Minimum Order Quantity: 5000
Packaging Details: PALLET OR CARTON
Delivery Time: 20DAYS
Supply Ability: 5000ROLLS/DAY
Detailed Product Description
WEIGTH: 500G/M2 WIDTH: 6.5-20CM
LENGTH: 10-100M MATERIAL: GALVANIZED SHEET
HOLE SIZE: 12*25MM PACKING: BY CARTON OR PALLET
High Light:

10cm width brick wall mesh

,

95m length brick wall mesh

,

galvanized sheet brick wall mesh

95m Length Construction Brick Wall Reinforcing Mesh 10cm Width



Brick Wall Mesh for construction for use primarily as an anti-cracking reinforcement in the construction of brick and block masonry. We can produce the Length Less than 200m.Brick Wall Mesh is available in a variety of widths to suit most wall constructions and is supplied coiled for ease of handling.We could make the width from 6.5cm-20cm. Additional applications include strengthening cornices, low walls and balconies over door and window openings.





Specification:



Hole Type: Diamond

Hole Size: 12*25mm

width: 6.5CM,10cm, 15cm, 20cm

Length: 10m-100m





How to Install Brick Wall  Mesh?



The coil mesh is laid in strips between brick or block courses leaving approximately 25mm clearance from the faces of the work. Where coil mesh joins are required, ensure they overlap by at least 75mm.

The reinforcement is then simply embedded in the mortar for the next course.

In most instances, application every third course, for the full length of the wall, will be sufficient.

To reinforce brickwork at an opening, e.g. window or door, mesh should be installed to overlap part of the opening, and part of the solid wall.

Thinking of the width of the opening, lay the mesh approximately a quarter of the way across the opening. The mesh should lie the same distance again, across the solid wall.

Above windows or doors, install Catnic mesh for 2-3 courses, starting from the course above the lintel as shown below
