200mm Width Rectangle Single Nail Anti Plates Truss Nail 250mm Length

Certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
I'm Online Chat Now

200mm Width Rectangle Single Nail Anti Plates Truss Nail 250mm Length

200mm Width Rectangle Single Nail Anti Plates Truss Nail 250mm Length
200mm Width Rectangle Single Nail Anti Plates Truss Nail 250mm Length 200mm Width Rectangle Single Nail Anti Plates Truss Nail 250mm Length

Large Image :  200mm Width Rectangle Single Nail Anti Plates Truss Nail 250mm Length

Product Details:
Place of Origin: ANPING HEBEI CHINA
Brand Name: JiaFu
Model Number: JFAS01
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Packaging Details: CARTON
Delivery Time: 20-30DAYS
Payment Terms: T/T
Supply Ability: 1000PCS/DAY
Detailed Product Description
Material: Galvanized Plate Thickness: 1mm
Used: To Prevent Split In Hardwood Poles And Logs Type: Square And Rectangle
Width: 50mm-200mm Length: 75mm-15m
High Light:

200mm width anti plates

,

250mm length anti plates

,

truss nail anti plates

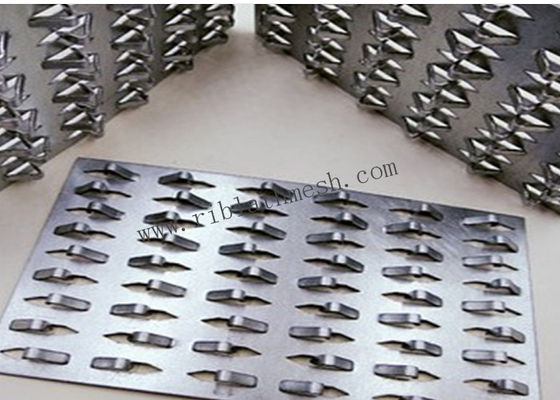

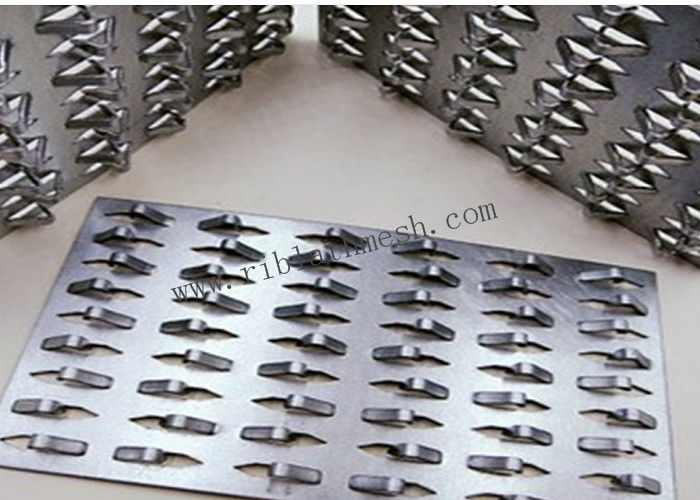

200mm Width Rectangle Single Nail Anti Split Plate Truss Nail 250mm Length

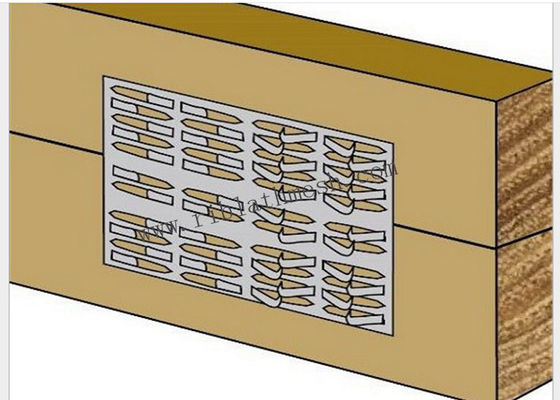

Anti Split Plates are used to prevent split in hardwood poles and logs. This type is rectangle or coil. Timber naturally swells and shrinks as it weathers causing it to weaken. Anti-split plates can help reduce splitting in timber, which occurs as a result of weathering, but not all plates are created equal. Anti-split plates are easy to press and eliminate timbersplitting while reducing tooth withdrawal.



Material:



Hot Dippd Plate.Zinc:80g/m2 or 275g/m2





Specification:



TRUSS NAIL PLATE SINGLE  NAIL



NO SIZE(INCH) SIZE(MM) SPECIFICATION(MM)
W L T
JF-ASPS5075 2’’×3’’ 50mm×75mm 50mm 75mm 1mm
JF-ASPS50100 2’’×4’’ 50mm×100mm 50mm 100mm 1mm
JF-ASPS75150 3’’×6’’ 75mm×150mm 75mm 150mm 1mm
JF-ASPS100100 4’’×4’’ 100mm×100mm 100mm 100mm 1mm
JF-ASPS100125 4’’×5’’ 125mm×125mm 100mm 125mm 1mm
JF-ASPS100150 4’’×6’’ 100mm×150mm 100mm 150mm 1mm
JF-ASPS150150 6’’×6’’ 150mm×150mm 150mm 150mm 1mm
JF-ASPS150175 6’’×7’’ 150mm×175mm 150mm 175mm 1mm
JF-ASPS200200 8’’×8’’ 200mm×200mm 200mm 200mm 1mm
JF-ASPS200250 8’’×10’’ 200mm×250mm 200mm 250mm 1mm
JF-ASPS7510 3’’×400’’ 75mm×10M 75mm 10M(COIL) 1mm
JF-ASPS75150 3’’×600’’ 75mm×15M 75mm 15M(COIL) 1mm
JF-ASPS10010 4’’×400’’ 100mm×10M 100mm 10M(COIL) 1mm
JF-ASPS10015 4’’×600’’ 100mm×15M 100mm 15M(COIL) 1mm



FEATURES

• Easy to press

• Eliminate timber splitting

• Reduce tooth withdrawal
