Product Details:
Payment & Shipping Terms:
|
| NAME: | RIB LATH | USED: | In Construction |
|---|---|---|---|
| Width: | 600mm | Length: | 2-3m |
| Hole: | 7*20mm | Material: | Galvanized Plate |
| High Light: | construction galvanized expanded metal lath,galvanized plate expanded metal lath,civil building galvanized expanded metal lath |
||
Expanded Metal Lath is extensively used in construction of civil building, industrial building, construction under the water like banks, ponds, infrastructure engineering as well as municipal works. Rib Lath works well with other construction materials to save both cost and energy.

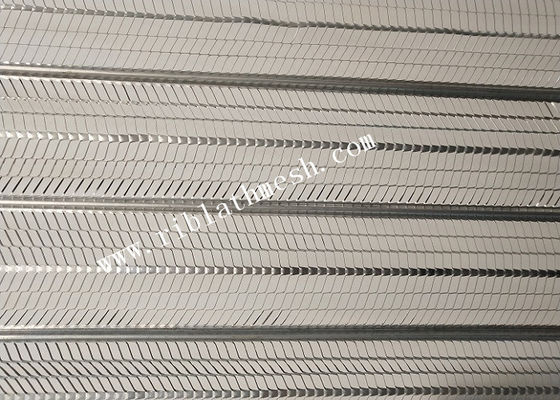

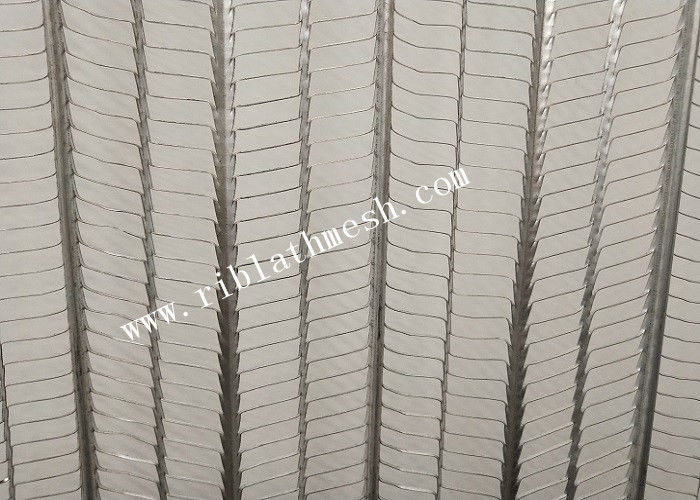

JF0704 Expanded Metal Lath is one type of the Expanded Metal Lath.The hole size is :7*20mm.It's 4 hole between the two ribs.This mesh offers special extension due to its special opening and the uniform V type reinforced structure in the surface.This type have 7 ribs.
Specification:
We could produce the thickness: 0.2-0.4mm. The very popular thickness is: 0.3mm
| TYPE | THICKNESS(MM) | SW*LW(mm) | Rib Height (mm) | Reinforcement Distance(mm) | Width(MM) |
| JF0704 | 0.20-0.40 | 7×20 | 5 | 100 | 600 |
Application
Expanded Metal Lath is extensively used:
As a plaster background for ceilings, walls, partitions and steelwork encasement.
To refurbish damaged or aged masonry walls.
