Home ProductsAluminium Angle Bead

49g/M Weight 0.4mm Thickness Diamond Wing Aluminium Angle Bead 3003 Material

Certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
I'm Online Chat Now

49g/M Weight 0.4mm Thickness Diamond Wing Aluminium Angle Bead 3003 Material

49g/M Weight 0.4mm Thickness Diamond Wing Aluminium Angle Bead 3003 Material
49g/M Weight 0.4mm Thickness Diamond Wing Aluminium Angle Bead 3003 Material

Large Image :  49g/M Weight 0.4mm Thickness Diamond Wing Aluminium Angle Bead 3003 Material

Product Details:
Place of Origin: ANPING HEBEI CHINA
Brand Name: JIAFU
Model Number: JFAA32
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Packaging Details: Carton
Delivery Time: 15-30
Supply Ability: 5 containers
Detailed Product Description
Material: Aluminium 3003 Thickness: 0.4-0.45mm
Length: 2-3m Packing: 80pcs/Carton
Color: Silver Wing: 32mm
High Light:

3003 aluminium metal angle bead

,

3003 material aluminium angle bead

,

diamond wing aluminium angle bead

49g/m Weight Aluminium Angle Bead 0.4mm Thickness 3003 Material



Aluminium Angle Bead is made of aluminium sheet 3003.This goods is have reinforce flange.This design is sturdier than other type.This mesh insures a perfect bond and provides effective reinforcement where most needed. Straight edge nose is easy to install and permits plumb straight outside corners. Excellent protection for corridor corners exposed to traffic



Specification:



Material Edge Length Pes/
box
Aluminium 3003 32mm 2-3m 80



Hole: 3*10mm

Reinforce flange: 4mm



Feature:

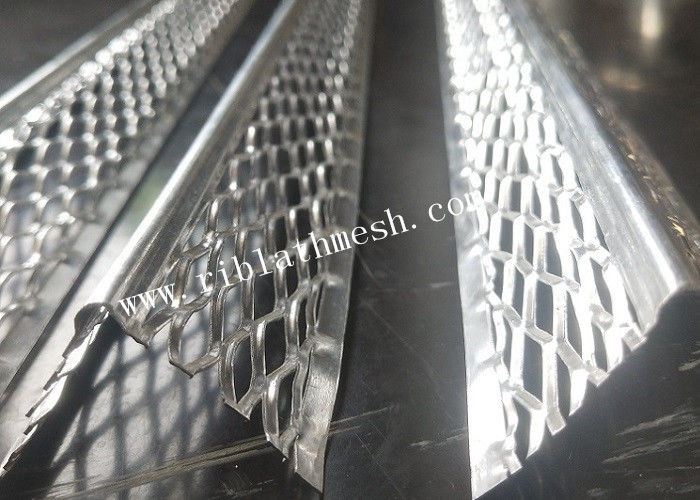

Aluminium Angle Bead have a smooth round nose bead with diamond mesh wings for the keying of plaster right up to the nose of the bead. On the outside is the finished edge which is where one side of your drywall knife runs on when you are applying drywall mud. The two flanges sit flat on your raw drywall. The diamond decoration along the length of the flange act as a keyway for holding the drywall mud to the drywall and the corner.
