Name: | HY Rib Mesh | WIDTH: | 0.45M |
---|---|---|---|
LENGTH: | 2-3M | Rib Height: | 15mm |
Thickness: | 0.18-0.4mm | MATERIAL: | Galvanized Plate |
High Light: | rib lath mesh galvanized,formwork rib lath mesh,hy rib mesh galvanized |

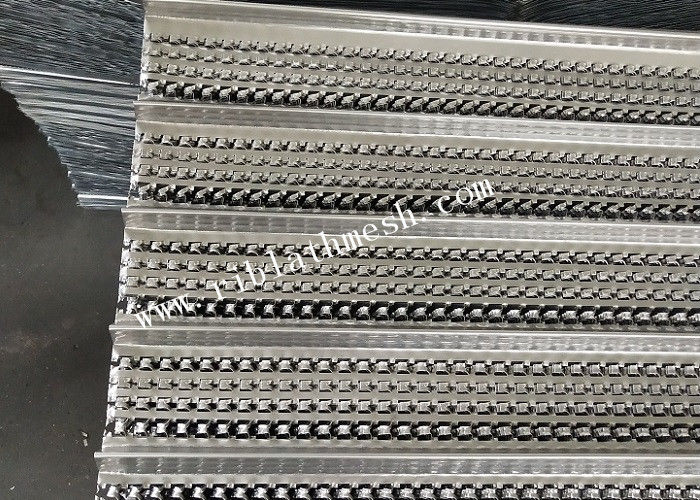

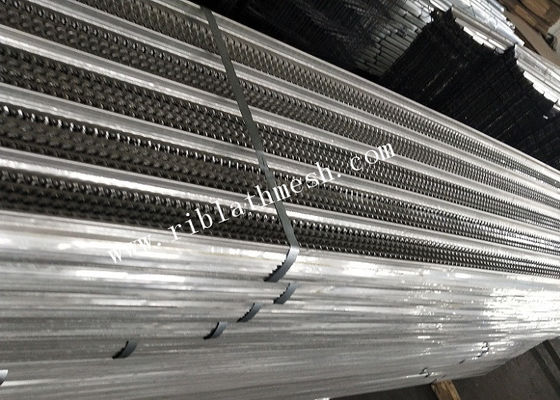

16mm Rib Height Galvanized HY Rib Mesh 2.5M Length 0.45m Width
HY Rib Mesh is made of the Hot-dipped galvanized steel sheets,We can produce the width:0.45m .Length:1m-3m.Rib Heght:16mm,21mm.
Raw Material:
Hot-dipped galvanized steel sheets
Specification:
The follows is the 15mm Height specification for you reference:
Model | Thickness (mm) | Weight (kg) | Width (mm) | Length (mm) | Rib Height (mm) | Rib Distance(mm) |
018 | 0.18 | 1.35 | 450 | 2200 | 15 | 90 |
021 | 0.21 | 1.60 | 450 | 2200 | 15 | 90 |
023 | 0.23 | 1.70 | 450 | 2200 | 15 | 90 |
025 | 0.25 | 1.90 | 450 | 2200 | 15 | 90 |
030 | 0.30 | 2.45 | 450 | 2200 | 15 | 90 |
035 | 0.35 | 2.90 | 450 | 2200 | 15 | 90 |
0.40 | 0.40 | 3.30 | 450 | 2200 | 15 | 90 |
Feature:
HY Rib Mesh has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free form work.
