2.5m Length 0.6m Width Construction Formwork Metal Rib Lath

Certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
I'm Online Chat Now

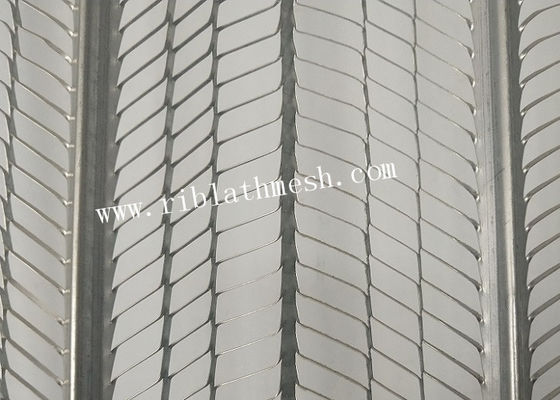

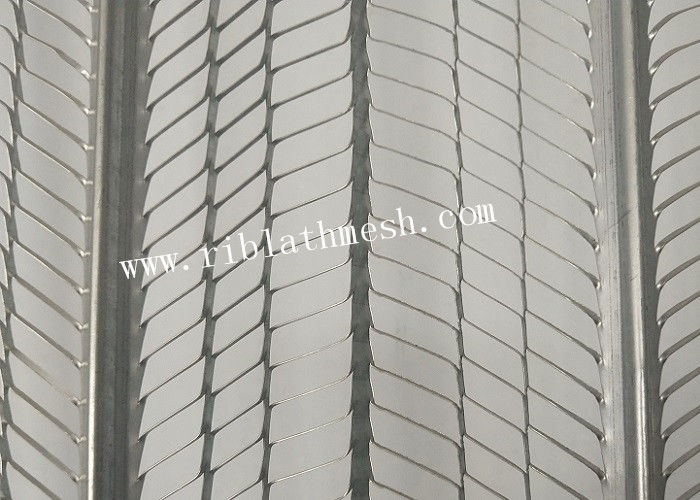

2.5m Length 0.6m Width Construction Formwork Metal Rib Lath

2.5m Length 0.6m Width Construction Formwork Metal Rib Lath
2.5m Length 0.6m Width Construction Formwork Metal Rib Lath

Large Image :  2.5m Length 0.6m Width Construction Formwork Metal Rib Lath

Product Details:
Place of Origin: ANPING HEBEI CHINA
Brand Name: JIAFU
Model Number: JF0706
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Packaging Details: Pallet
Delivery Time: 20-30days
Supply Ability: 1000pcs/day
Detailed Product Description
Name: Expanded Rib Lath Width: 600mm
Length: 2-3m Material: Galvanized Sheet
Hole Size: 7*15mm Used: In Construction
High Light:

2.5m Length Metal Rib Lath

,

0.6m Width Metal Rib Lath

,

Formwork Metal Rib Lath



2.5m Length Rib Lath Mesh 0.6n Width Construction Wire Mesh Lath



Rib Lath Mesh JF0706 have 7 ribs ,the rib height is 8mm,the distance between the two ribs is 100mm ,6holes,we can produce the thickness from 0.25mm to 0.4mm.



Rib Lath offers special extension due to its special opening and the uniform V type reinforced structure in the surface. Rib Lath is extensively used in construction of civil building, industrial building, construction under the water like banks, ponds, infrastructure engineering as well as municipal works. Rib Lath works well with other construction materials to save both cost and energy.



Size:

TYPE THICKNESS(MM) SW*LW(mm) Tendons High(mm) Reinforcement Distance(mm) Width(MM)
JF0706 0.28-0.40 7×15 8 100 600



2.5m Length 0.6m Width Construction Formwork Metal Rib Lath 0
