| Width: | 500-900mm | Hole: | 5*11mm |
|---|---|---|---|
| Length: | 1-3m | Rib Height: | 9mm |
| Material: | Galvaninzed Plate | Rib Distance: | 100mm |
| High Light: | 900mm metal rib lath,3m length metal rib lath,reinforced flat rib metal lath |
||

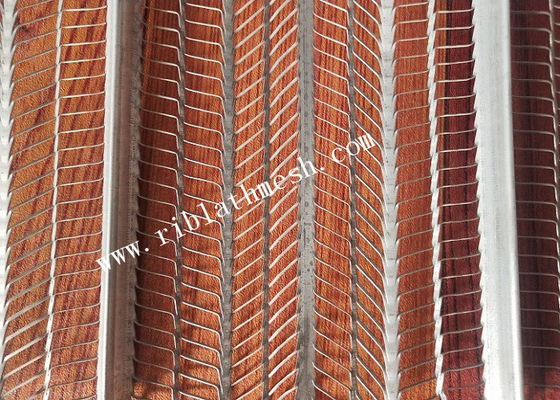

900mm Metal Rib Lath V Type Reinforced Structure In The Surface 3m Length
Rib Lath offers special extension due to its special opening and the uniform V type reinforced structure in the surface. This type the hole size is 5*11mm.We can produce the width:500mm,600mm,700mm,800mm,900mm.
Material:
Galvanized Steel Plate
Specification
Width:500mm,600mm,700mm,800mm,900mm
Thickness:0.3-0.4mm
Hole size:5*11mm
Tendons Height:9mm
Length:1-3m
| TYPE | THICKNESS(MM) | SW*LW(mm) | Tendons Height(mm) | Reinforcement Distance(mm) | Width(MM) |
| JF1008 | 0.3mm-0.4mm | 5*11 | 9 | 100 | 500-900mm |
Application:
Widely used as a background for plaster, render, stucco application in construction of suspended ceilings partition.
Feature:
Rib Lath offers special extension due to its special opening and the uniform V type reinforced structure in the surface.
