High Ribbed HY Rib Mesh U Patterns 0.30mm Thickness With Better Forming Flexibility

Large Image : High Ribbed HY Rib Mesh U Patterns 0.30mm Thickness With Better Forming Flexibility

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	XINGTAI
Certification:	ISO9001:2000
Model Number:	030

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pieces
Packaging Details:	pallet
Delivery Time:	10-15days
Supply Ability:	50000pieces/month

Contact Now

Detailed Product Description

Material:

Hot-dipped Galvanized Steel Sheet

Width:

450mm

Length:

2200mm

Thickness:

0.30mm

High Light:

hy rib lath

hy rib formwork

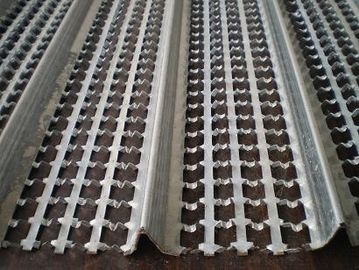

Hy Rib Mesh high ribbed formwork 0.30mm thickness hy-rib mesh

High ribbed formwork is manufactured from hot-dipped galvanised steel sheets.

Because its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality construction security and widely used in tunnel bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, ship-yards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free formwork.

Unbeatable quality hy ribbed mesh made in China
Thickness (mm)	Weight (kg)	Width (mm)	Length (mm)	Rib Height (mm)	Rib Distance (mm)
0.21	1.70	450	2200	14-20	90
0.23	1.90	450	2200	14-20	90
0.30	2.48	450	2200	14-20	90
0.35	2.90	450	2200	14-20	90
0.40	3.30	450	2200	14-20	90
0.45	3.70	450	2200	14-20	90
0.50	4.10	450	2200	14-20	90
