| Name: | HY Rib Mesh | WIDTH: | 0.45M |
|---|---|---|---|
| LENGTH: | 2-3M | Rib Height: | 21mm,15mm |
| Thickness: | 0.2-0.4mm | MATERIAL: | Galvanized Plate |
| High Light: | hy rib lath,hy rib sheet |
||

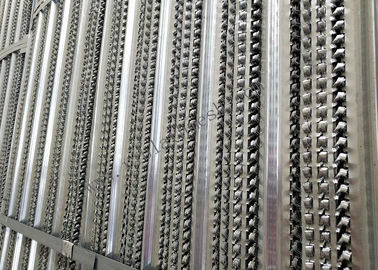

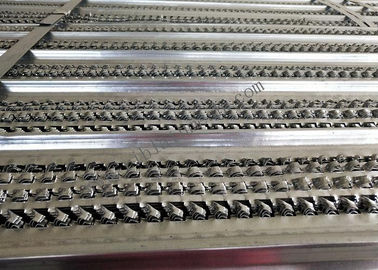

0.45mm Width Hy Rib Mesh 3m Length 0.4mm Thickness Widely Used In Tunnels Bridges
Galvanized Hy Rib Mesh is made of hot dipped galvanized plate.The Width is 0.45mm.And we can produce the length less than 3m.Non-welded expanded mesh.It has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free form work.
Specification:
The follows is the 15mm Height specification for you reference:
| Model | Thickness (mm) | Weight (kg) | Width (mm) | Length (mm) | Rib Height (mm) | Rib Distance(mm) |
| 021 | 0.21 | 1.70 | 450 | 2200 | 14-20 | 90 |
| 023 | 0.23 | 1.90 | 450 | 2200 | 14-20 | 90 |
| 030 | 0.30 | 2.48 | 450 | 2200 | 14-20 | 90 |
| 035 | 0.35 | 2.90 | 450 | 2200 | 14-20 | 90 |
| 040 | 0.40 | 3.30 | 450 | 2200 | 14-20 | 90 |
| 045 | 0.45 | 3.70 | 450 | 2200 | 14-20 | 90 |
| 050 | 0.50 | 4.10 | 450 | 2200 | 14-20 | 90 |
