| Name: | HY Rib Mesh | WIDTH: | 0.45M |
|---|---|---|---|
| LENGTH: | 2-3M | Rib Height: | 14-20mm |
| Thickness: | 0.18-0.57mm | MATERIAL: | Galvanized Plate |
| High Light: | hy rib lath,hy rib sheet |
||

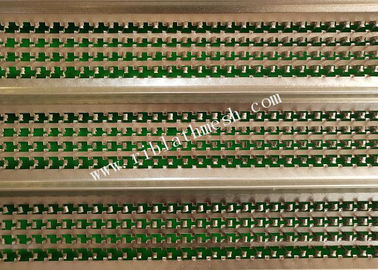

0.45m Width 0.4mm Thickness Galvanized HY Rib Mesh 2.4m Length Widely Used In Tunnels Bridges
Raw Material:
Hot-dipped galvanized steel sheets
Specification:
The follows is the 20mm Height specification for you reference:
| Model | Thickness (mm) | Weight (kg) | Width (mm) | Length (mm) | Rib Height (mm) | Rib Distance(mm) |
| 2021 | 0.21 | 1.70 | 450 | 2200 | 20 | 90 |
| 2023 | 0.23 | 1.90 | 450 | 2200 | 20 | 90 |
| 2025 | 0.25 | 2.10 | 450 | 2200 | 20 | 90 |
| 2030 | 0.30 | 2.50 | 450 | 2200 | 20 | 90 |
| 2035 | 0.35 | 2.90 | 450 | 2200 | 20 | 90 |
| 2040 | 0.40 | 3.40 | 450 | 2200 | 20 | 90 |
| 2045 | 0.45 | 3.80 | 450 | 2200 | 20 | 90 |
| 2050 | 0.50 | 4.10 | 450 | 2200 | 20 | 90 |
| 2057 | 0.57 | 4.70 | 450 | 2200 | 20 | 90 |
Feature:
HY Rib Mesh has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free form work.
How to Install High Ribbed Formwork
