32mm Wing Metal Angle Bead With 3mm Reinforce Flange

Certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
I'm Online Chat Now

32mm Wing Metal Angle Bead With 3mm Reinforce Flange

32mm Wing Metal Angle Bead With 3mm Reinforce Flange
32mm Wing Metal Angle Bead With 3mm Reinforce Flange

Large Image :  32mm Wing Metal Angle Bead With 3mm Reinforce Flange

Product Details:
Place of Origin: ANPING HEBEI CHINA
Brand Name: Jiafu
Model Number: JFAA32
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Packaging Details: Carton
Delivery Time: 15-30
Supply Ability: 5 containers
Detailed Product Description
Raw Material: ALUMINIUM 3003 Thickness: 0.4-0.45mm
Length: 2-3m Packing: 80pcs/Carton
Color: Silver Wing: 32mm
High Light:

32mm Wing Metal Angle Bead

,

3mm Reinforce Flange Angle Bead

,

aluminium 3003 Metal Angle Bead

32mm Wing Aluminium Angle Bead With 3mm Reinforce Flange 80pcs/carton

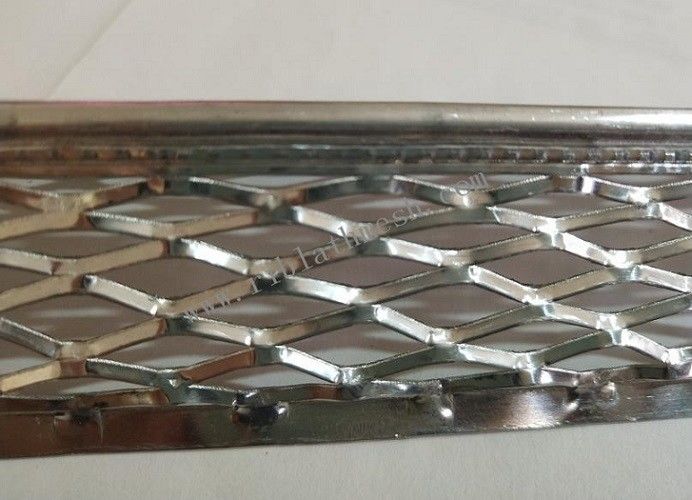

Aluminium Angle Bead is made of the grade 3003 aluminium plate.This goods is easy to cut because it made of aluminum sheet.It have a smooth round nose bead with diamond mesh wings for the keying of plaster right up to the nose of the bead. On the outside is the finished edge which is where one side of your drywall knife runs on when you are applying drywall mud. The two flanges sit flat on your raw drywall. The diamond decoration along the length of the flange act as a keyway for holding the drywall mud to the drywall and the corner. This mesh insures a perfect bond and provides effective reinforcement where most needed. Straight edge nose is easy to install and permits plumb straight outside corners. Excellent protection for corridor corners exposed to traffic



Specification:



Material Edge Length Pes/
box
Aluminium 3003 32mm 2-3m 80



Hole: 3*10mm

Reinforce flange: 4mm
