Steel Galvanised Metal Lath Building Material To Refurbish Damaged Walls

Certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
I'm Online Chat Now

Steel Galvanised Metal Lath Building Material To Refurbish Damaged Walls

Steel Galvanised Metal Lath Building Material To Refurbish Damaged Walls
Steel Galvanised Metal Lath Building Material To Refurbish Damaged Walls Steel Galvanised Metal Lath Building Material To Refurbish Damaged Walls Steel Galvanised Metal Lath Building Material To Refurbish Damaged Walls Steel Galvanised Metal Lath Building Material To Refurbish Damaged Walls Steel Galvanised Metal Lath Building Material To Refurbish Damaged Walls

Large Image :  Steel Galvanised Metal Lath Building Material To Refurbish Damaged Walls

Product Details:
Place of Origin: China
Brand Name: Shuangjiao
Model Number: RL-01
Payment & Shipping Terms:
Minimum Order Quantity: 100piece
Packaging Details: Pallet
Delivery Time: 10days
Payment Terms: Western Union, L/C, T/T
Detailed Product Description
High Light:

hi rib mesh

,

rib lath cladding

High quality metal lath and rib lath

PrefaceSteel Galvanised Metal Lath Building Material To Refurbish Damaged Walls 0

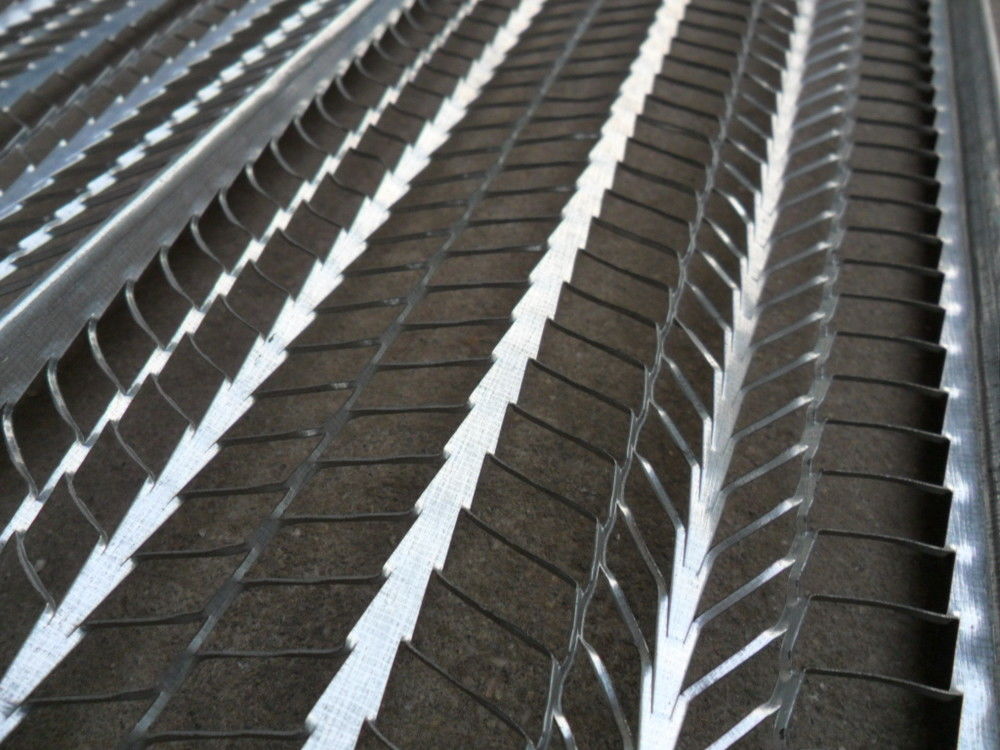

Macro-Mesh Rib Lath is expanded metal lath stiffened by longitudinal steel ribs, formed in the same sheet of metal.

The mesh areas of the lath are expanded by cutting and stretching in the sheet of metal, the ribs being simultaneously roll-formed.

The furring design of the mesh provides an excellent background plaster for construction of partitions, suspended ceilings and refurbishment works. The advantage of rib lath over metal lath is that the support centres can be increased or widened.



Application

Rib Lath is extensively used:

  • As a plaster background for ceilings, walls, partitions and steelwork encasement.

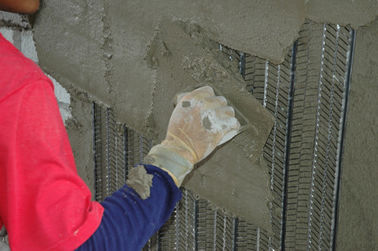

  • To refurbish damaged or aged masonry walls.
Ref No Material Thickness (mm) Weight kg/m2 Sheet Size (mm) Material Maximum Fixing Centres (mm)
HI RIB 25 0.25 1.04 600 x 2400 Steel 400
HI RIB 268 0.25 1.04 600 x 2400 Steel 400
HI RIB 25 0.30 1.14 600 x 2400 Pre-galvanised Steel 400
HI RIB 268 0.30 1.14 600 x 2400 Pre-galvanised Steel 400
