Steel Stucco Diamond Mesh Coil 12x25mm Mesh Size 10-100 Meter Length

Certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
China ANPING COUNTY JIAFU WIRE MESH MANUFACTURING CO.,LTD certification
I'm Online Chat Now

Steel Stucco Diamond Mesh Coil 12x25mm Mesh Size 10-100 Meter Length

Steel Stucco Diamond Mesh Coil 12x25mm Mesh Size 10-100 Meter Length
Steel Stucco Diamond Mesh Coil 12x25mm Mesh Size 10-100 Meter Length Steel Stucco Diamond Mesh Coil 12x25mm Mesh Size 10-100 Meter Length Steel Stucco Diamond Mesh Coil 12x25mm Mesh Size 10-100 Meter Length Steel Stucco Diamond Mesh Coil 12x25mm Mesh Size 10-100 Meter Length Steel Stucco Diamond Mesh Coil 12x25mm Mesh Size 10-100 Meter Length

Large Image :  Steel Stucco Diamond Mesh Coil 12x25mm Mesh Size 10-100 Meter Length

Product Details:
Place of Origin: China
Brand Name: Shuangjiao
Model Number: CL001
Payment & Shipping Terms:
Minimum Order Quantity: 500 rolls
Price: USD 0.65-5 /-per roll
Packaging Details: Carton
Delivery Time: 5days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 roll per day
Detailed Product Description
Matel: Galvanized Steel
High Light:

brick wall reinforcing mesh

,

stucco wire mesh

Expanded metal mesh/brickwork reinforcement mesh/metal lath for plaster

Description of Brick Wall Mesh



Brick Mesh is essential reinforcement components for masonry work to provide additional resistance to stresses, vibration and thermal movement of the brick wall. The lowest layer of Brick Mesh should be laid over the 1st or 2nd course and at every subsequent 4th course of brickwork. There should be a minimum 150mm lapping where different sections of mesh reinforcement overlap.



Material: Galvanized steel, stainless steel

Width: 65mm, 100mm, 175mm, 225mm, 300mm

Length: 1.2m,20m



Applications:
Expanded metal is mainly used in concrete slab, roads, paving, foundations, marine work, bank strong rooms, partition slabs, concrete block work, asphalt guttering etc.



Specification of Brick Wall Mesh



Width: 65cm,100cm,150cm,200cm

Length:1.2m,20m



Specification of Brick Wire Mesh



Thickness: 0.3-0.6mm
Mesh size: 12x25mm
Roll width: 65mm, 75mm, 100mm, 175mm, 225mm, 300mm etc.
Roll length: 10m, 30m, 50m, 100m etc.
Packing: On cartons or as your requirement.



Galvanized
Steel
Stainless
Steel
Norminal Weight
Kgs/sqm
Roll Size
Width x Length
Recommended
Application
FLS-01 SS 0.9 65mm x 100m For 100mm Wall
FLS-02 SS 0.9 115mm x 100m For 150mm Wall
FLS-03 SS 0.9 175mm x 100m For 200mm Wall
FLS-04 SS 0.9 225mm x 100m For 250mm Wall



Description of Brick Mesh



Brick Wire Mesh is easy to handle, and when laid embedded in the mortar joining between brickwork or blockwore courses, forms an integral structure of great tcnsilc strcngth which assists in the resistance, vibrations and thermal changes.



The range of reinforcement coils satisfies most wall thickness. Laid on the mortar bed with 25mm clearance to the outside face of the wall and lapped ant least 75mm, if joining lengths.



The reinforcement is then embedded completely and for most applications, every third course is suffcient.



Brick Mesh Installation:


Fix into mortar between brick courses leaving 25mm clearance from face of brickwork. All joints require an overlap of at least 75mm. The mesh can be laid every third brickwork course for most reinforcement.



Brick Mesh Applications:


Concrete slabbing, roads, paving, foundations, marine work, bank strong rooms, partition slabs, concrete block work, asphalt guttering and so on

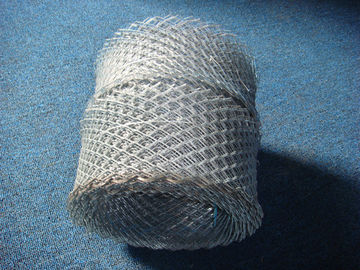

Steel Stucco Diamond Mesh Coil 12x25mm Mesh Size 10-100 Meter Length 0
