| MATERIAL: | Galvanized Plate | Name: | Brickwork Reinforcement Mesh |
|---|---|---|---|
| Thickness: | 0.35mm | Length: | 10-100m |
| Width: | 10cm-30cm | Weight: | 380/m2 |
| High Light: | brick wall mesh galvanized,block masonry mesh for brick wall,15m length brick wall mesh |
||

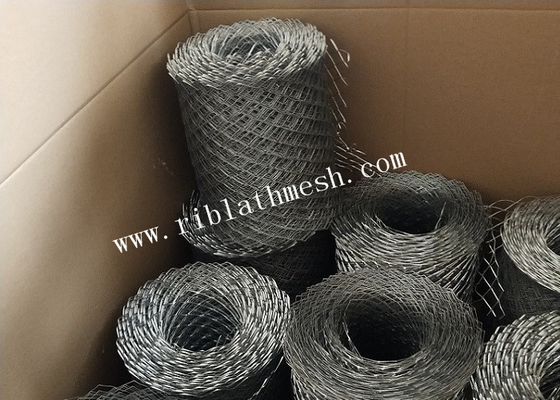

15m Length Galvanized Brick Wall Mesh Usded For Brick And Block Masonry
Brick Wall Mesh for use primarily as an anti-cracking reinforcement in the construction of brick and block masonry.We can produce the length from 10m to 100m.And easy to cut. Coil mesh is available in a variety of widths to suit most wall constructions and is supplied coiled for ease of handling. This product is easy to use without welding.Additional applications include strengthening cornices, low walls and balconies over door and window openings.
Specification:
Hole Type: Diamond

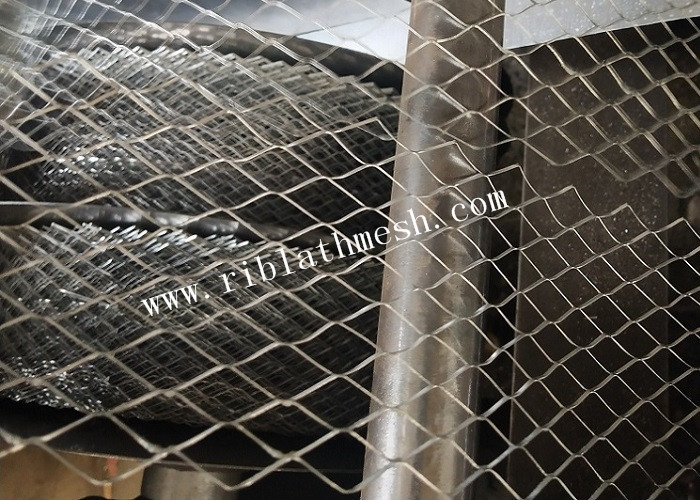

Hole Size: 16*28mm Llike the photo
width: 10cm, 15cm, 20cm,30cm
Length: 10m-100m
| Hole Type | Hole Size | Width | Length |
| Diamond | 16*28mm | 10cm-30cm | 10-100m |
How to Install Brickwork Reinforcement Mesh:
The coil mesh is laid in strips between brick or block courses leaving approximately 25mm clearance from the faces of the work. Where coil mesh joins are required, ensure they overlap by at least 75mm.
The reinforcement is then simply embedded in the mortar for the next course.
In most instances, application every third course, for the full length of the wall, will be sufficient.
To reinforce brickwork at an opening, e.g. window or door, mesh should be installed to overlap part of the opening, and part of the solid wall.
Thinking of the width of the opening, lay the mesh approximately a quarter of the way across the opening. The mesh should lie the same distance again, across the solid wall.
Above windows or doors, install Catnic mesh for 2-3 courses, starting from the course above the lintel .
